Bed Open Switch

  1. Disconnect the negative (-) battery terminal.

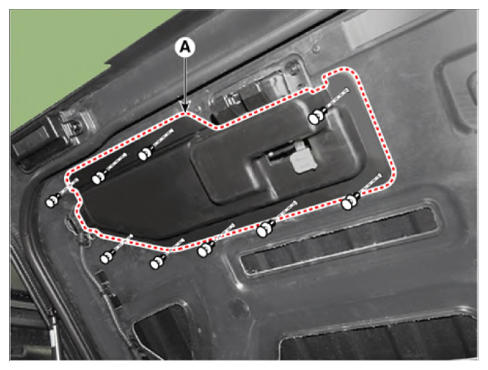

  2. Loosen the mounting clips, remove the bed floor latch cover (A).
    G14776483Courtesy of HYUNDAI MOTOR AMERICA

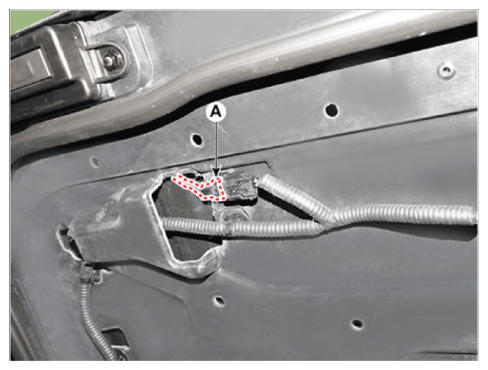

  3. Disconnect the bed open switch connector (A).
    G14776484Courtesy of HYUNDAI MOTOR AMERICA

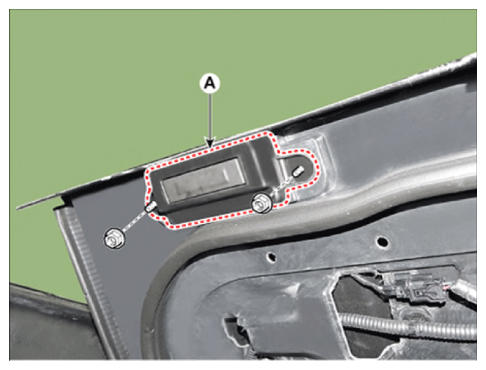

  4. Loosen the mounting nuts and remove the bed open switch (A).
    G14776485Courtesy of HYUNDAI MOTOR AMERICA
