Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the overhead console.

    (Refer to  OVERHEAD CONSOLE LAMP  )

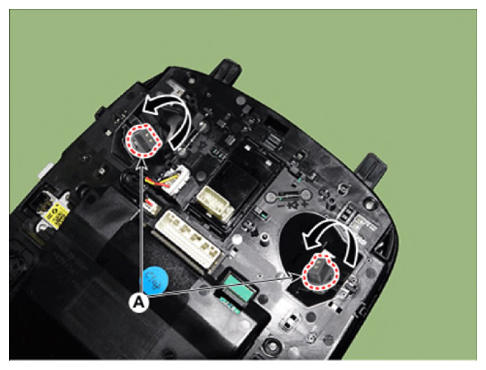

  3. Remove the overhead console lamp bulb (A) after turning in the counterclockwise direction.
    G14776810Courtesy of HYUNDAI MOTOR AMERICA
  4. To install, reverse removal procedure.
