Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

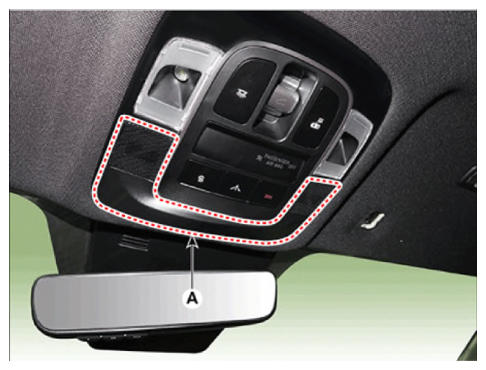

  2. Remove the overhead console cover (A).
    G14776807Courtesy of HYUNDAI MOTOR AMERICA

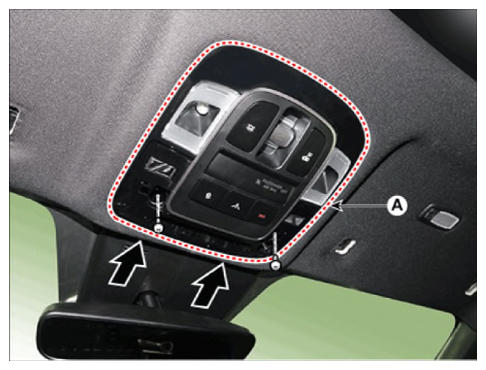

  3. Remove the mounting screws and then remove the overhead console (A).
    G14776808Courtesy of HYUNDAI MOTOR AMERICA

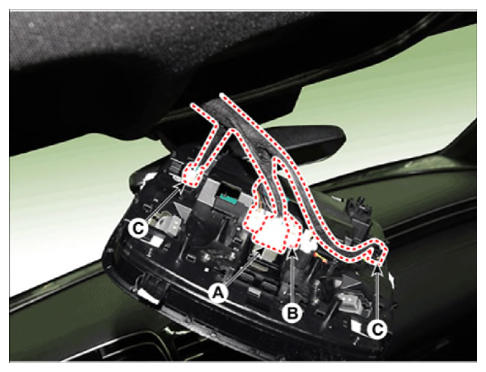

  4. Remove the overhead console after disconnect the connectors.
    1. Sunroof connector
    2. Main connector
    3. MIC connector
    G14776809Courtesy of HYUNDAI MOTOR AMERICA
