Repair Procedures: Removal

CAUTION:

Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.
(Refer to General Information - "LIFT AND SUPPORT POINTS ")

CAUTION:

Use fender covers to avoid damaging painted surfaces.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

NOTE:

Mark all wiring and hoses to avoid misconnection.

Disconnect the battery negative terminal.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Remove the air duct.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Disconnect the battery positive terminal.
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "REMOVAL ")
Remove the engine control module (ECM).
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")

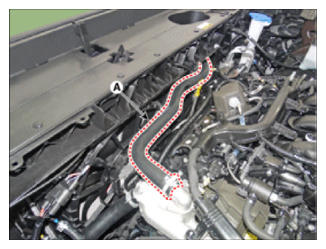

Disconnect the radiator upper hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the radiator lower hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

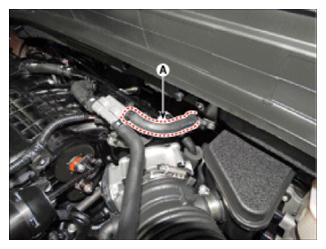

Disconnect the brake booster vacuum hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the heater hoses (A).

Courtesy of HYUNDAI MOTOR AMERICA

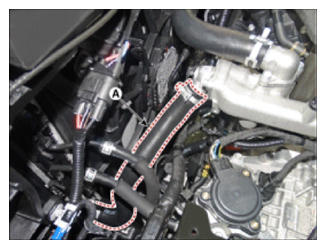

Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.
(Refer to Heating, Ventilation Air conditioning - "COMPRESSOR ")

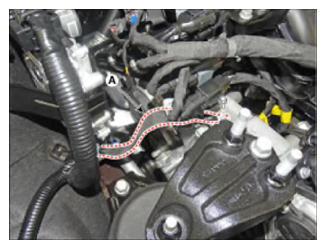

Remove the engine wiring connector and harness.

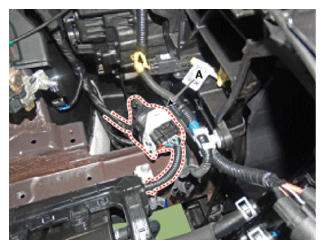

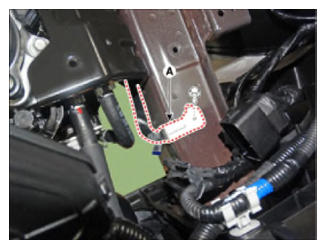

Disconnect the front connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

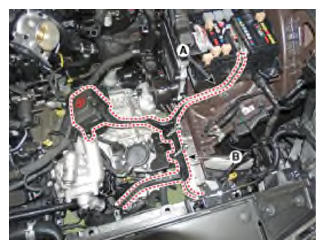

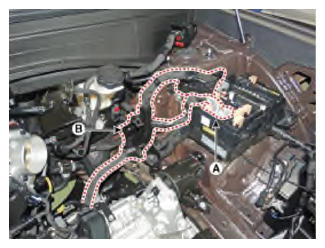

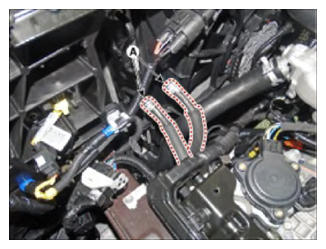

Disconnect the fuse box wiring cable (A).

Remove the battery wiring protector (B).

Courtesy of HYUNDAI MOTOR AMERICA

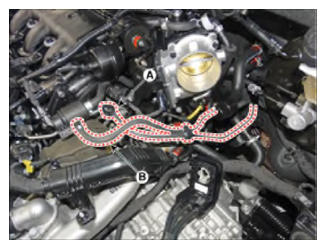

Disconnect the fuse box main wiring connector (A).

Remove the main wiring protector (B).

Courtesy of HYUNDAI MOTOR AMERICA

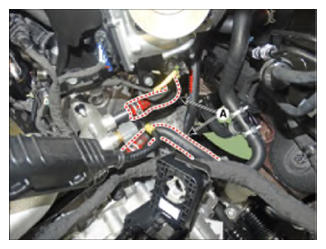

Disconnect the ATF cooler hoses (A).

Courtesy of HYUNDAI MOTOR AMERICA

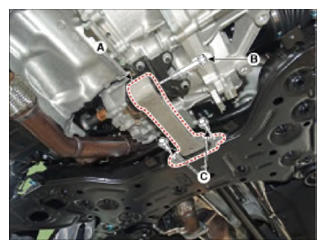

Remove the roll rod bracket (A).
Tightening torque

Bolt (B): 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6-94.0 lb.ft)

Bolts (C): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

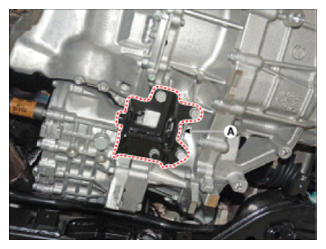

Remove the roll rod mounting support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the sub frame.
(Refer to Suspension System - "SUB FRAME ")
Remove the front muffler.
(Refer to Intake and Exhaust System - "MUFFLER ")
Remove the propeller shaft. [AWD type]
(Refer to Driveshaft and Axle - "PROPELLER SHAFT ASSEMBLY ")
Support the engine and transaxle assembly on a lift table.
Disconnect the engine ground cable (A).
Tightening torque:

10.8-13.7 N.m (1.1 - 1.4 kgf.m, 8.0-10.1 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

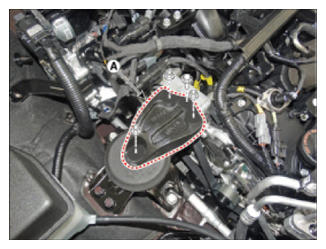

Remove the engine mounting support bracket (A).
Tightening torque:

98.1 - 117.7 N.m (10.0-12.0 kgf.m, 72.3-86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not reuse nuts.
Disconnect the transaxle ground cable (A).
Tightening torque:

10.8-13.7 N.m (1.1 - 1.4 kgf.m, 8.0-10.1 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

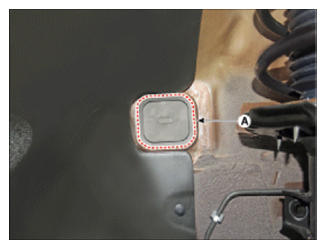

Remove the service cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

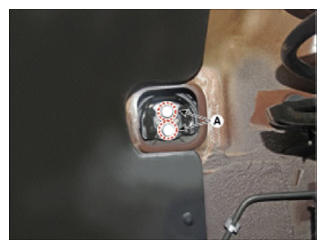

Remove the transaxle support bracket mounting bolts (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

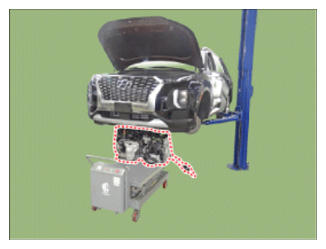

Remove the engine and transaxle assembly by lifting vehicle.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Before removing the engine and transaxle assembly, make sure hoses and wire connectors are disconnected.
- When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.
