Removal and Installation

CAUTION:
  • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.

    (Refer to General Information - "LIFT AND SUPPORT POINTS ")

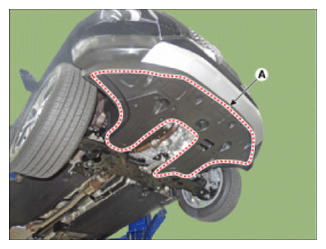

  1. Remove the engine room under cover (A).

    Tightening torque:

    7.8-11.8 N.m (0.8-1.2 kgf.m, 5.8-8.7 lb-ft)

    G14423111Courtesy of HYUNDAI MOTOR AMERICA
  2. Install in the reverse order of removal.
