Engine Mounting Bracket

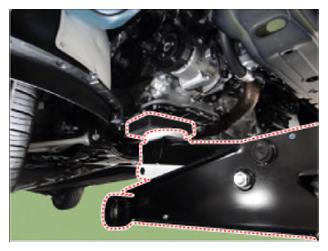

Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Install the jack to the edge of lower oil pan (A) to support the engine.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Insert the rubber block between jack and lower oil pan.

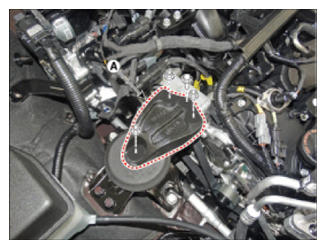

Remove the engine mounting support bracket (A).
Tightening torque:

98.1 - 117.7 N.m (10.0-12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not reuse nuts.

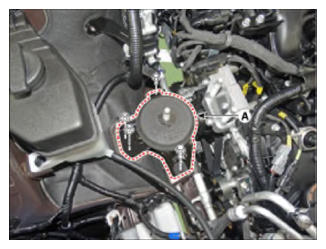

Remove the engine mounting bracket (A).
Tightening torque:

63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
