Repair Procedures: Replacement

Turn the ignition switch OFF and disconnect the battery negative (-) cable.
Turn the steering wheel so that the front wheels are placed in the straight ahead position.
Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
Remove the steering column shroud lower panel.
(Refer to Body - "STEERING COLUMN SHROUD LOWER PANEL ")
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Disconnect the MDPS connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the fixed clip (A) and then remove the wiring from the steering column.

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting screws and remove the shower duct [LH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

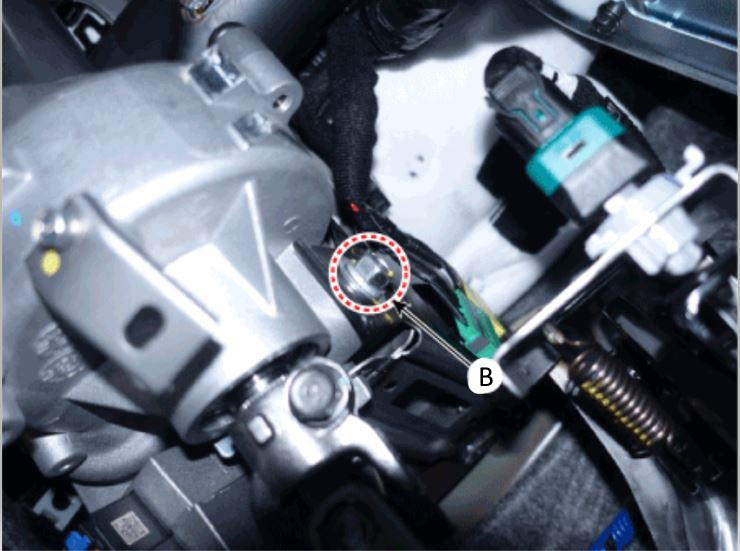

Loosen the mounting nut (A) and bolt (B) and leave the steering column and EPS unit assembly lie on the vehicle's floor.
Tightening torque
1. 25.0 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
2. 53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Remove the MDPS motor (A) after loosening the bolts.

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverser order of removal.
Conduct the "EPS Type Recognition" by GDS.
(Refer to "DIAGNOSIS WITH GDS ")
Conduct the "ASP Calibration" by GDS.
(Refer to "DIAGNOSIS WITH GDS ")
Check the DTC.
Turn off the IGN switch and wait for 20 seconds or more. Then check the operation after starting the engine.
