Repair Procedures: Removal

  1. Remove the following items.

    (Refer to Suspension System - "SUB FRAME ")

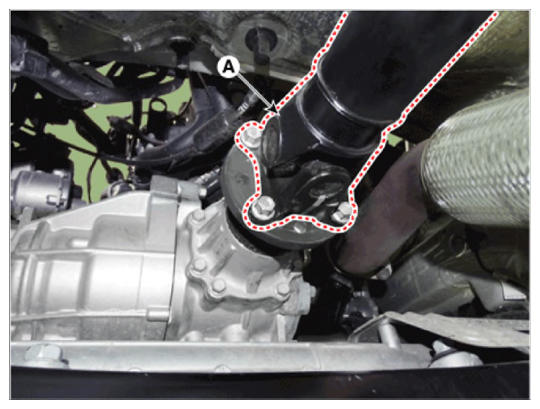

  2. Remove the propeller shaft (A).

    Tightening torque:

    49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.1 - 47.0 lb-ft)

    G14715025Courtesy of HYUNDAI MOTOR AMERICA

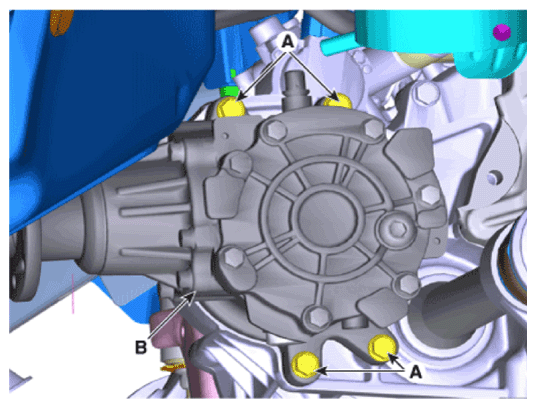

  3. Remove the transfer assembly (B) after disconnect the mounting bolt (A).

    Tightening torque:

    49.0 - 68.6 N.m (6.2 - 6.7 kgf.m, 44.8 - 48.4 lb-ft)

    G14715026Courtesy of HYUNDAI MOTOR AMERICA
