Terminal Function

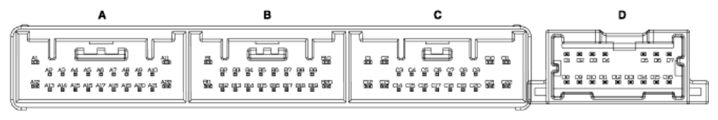

G14715621

Courtesy of HYUNDAI MOTOR AMERICA

Pin	Function
C22	Ignition 2_Heated handle power
C11	Heated handle
A21	NTC (-)
B15	NTC (+)
D10	Heated handle IND.
