Charging System: Alternator

Item Specification
Rated voltage 13.5 V, 150 A
Speed in use 1, 000 - 18, 000 RPM
Pin 1 (LIN)
Pulley Type OAP pulley

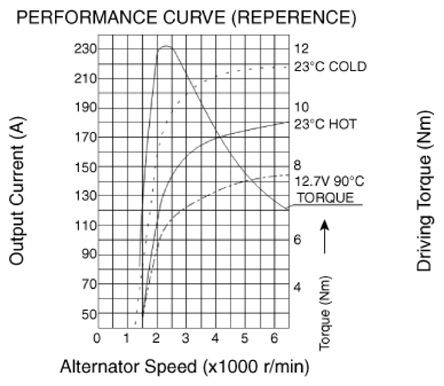

G14714141Courtesy of HYUNDAI MOTOR AMERICA
