Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the mirror wiring cover (A).
    G14713748Courtesy of HYUNDAI MOTOR AMERICA

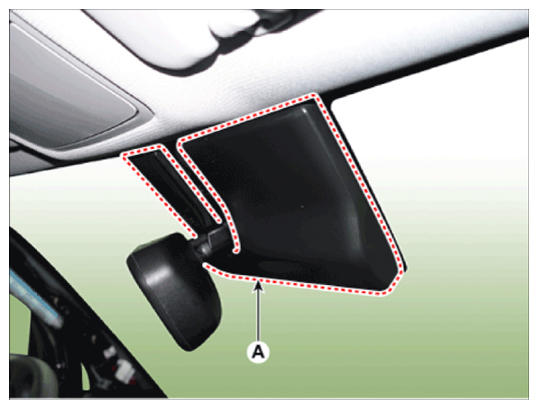

  3. Remove the front view camera cover (A).
    G14713749Courtesy of HYUNDAI MOTOR AMERICA

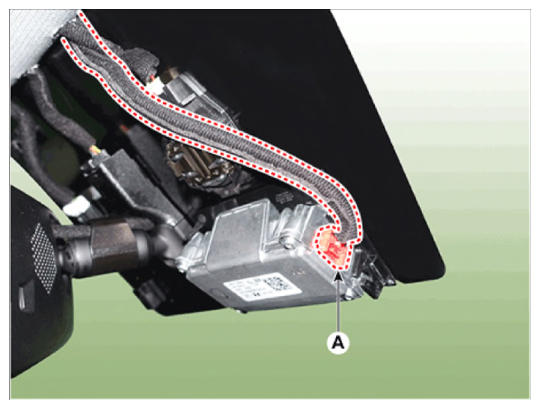

  4. Disconnect the front view camera connector (A).
    G14713750Courtesy of HYUNDAI MOTOR AMERICA

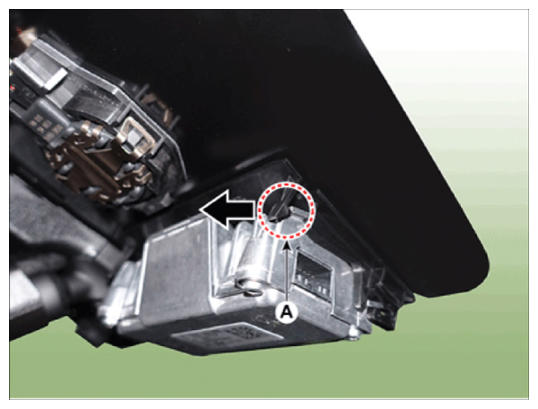

  5. Press the lock pin (A) and remove the front view camera.
G14713751Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • When separate the fixed points, be careful not to damage it.
