Trunk Lock Module Inspection
- Remove the trunk lid trim.
(Refer to Body - "LIFTGATE TRIM ")

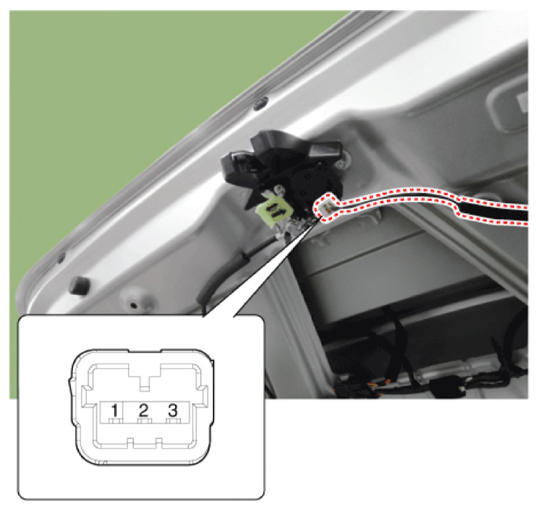

- Disconnect the connector from the actuator

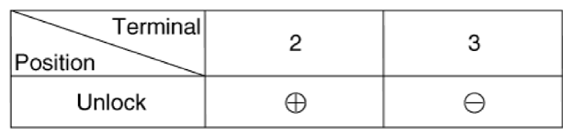

- Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.

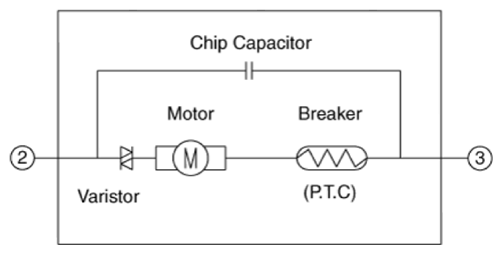

- Checking the trunk of the vehicle power option power refers to the trunk module.
