Tire Wear: Notes

  1. Measure the tread depth of the tires.

    Tread depth [limit]:  1.6 mm (0.063 in)

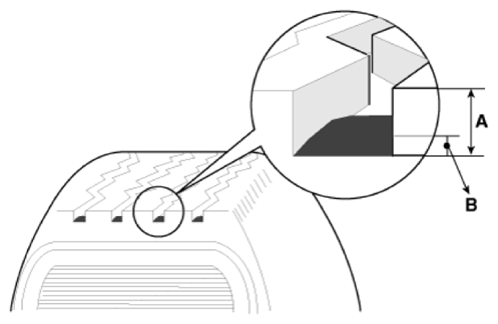

  2. If the remaining tread depth (A) is less than the limit, replace the tire.
NOTE:
  • When the tread depth of the tires is less than 1.6 mm (0.063 in), the wear indicators (B) will appear.
G14715379Courtesy of HYUNDAI MOTOR AMERICA
