Repair Procedures: Replacement
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Turn the steering wheel so that the front wheels are placed in the straight ahead position.
- Remove the driver airbag module (DAB).
(Refer to DRIVER AIRBAG (DAB) MODULE & CLOCK SPRING Restraint - "Driver Airbag (DAB) Module and Clock Spring")

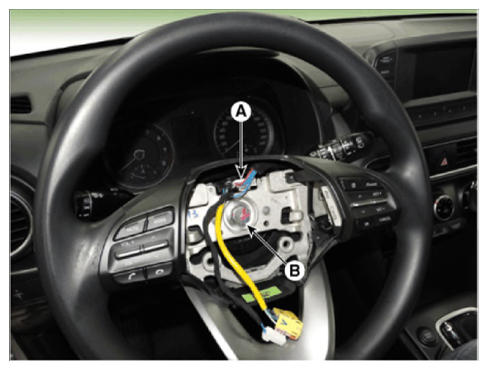

- Disconnect the connector (A) and then remove the steering wheel by loosening the lock bolt (B).
Tightening torque:
44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)
NOTE:- Do not reuse the steering lock bolt.

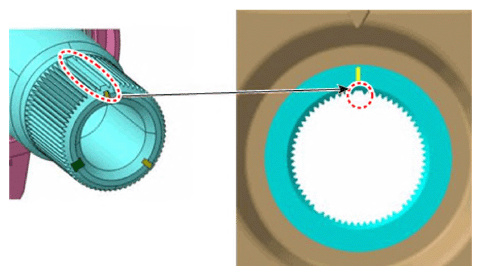

- When assembling, match the gear teeth as shown in the illustration below.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")

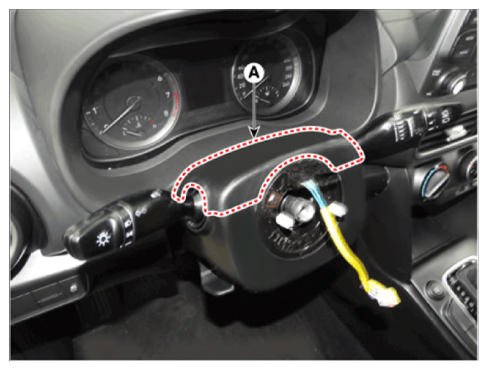

- Remove the steering column shroud upper panel (A).

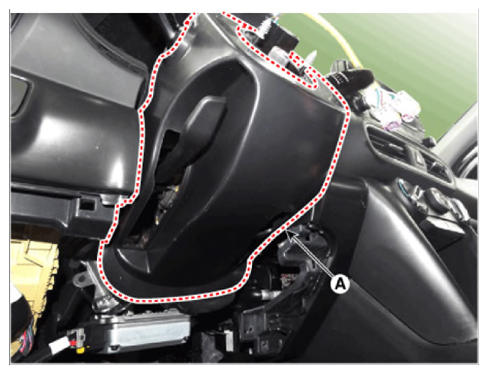

- Remove the steering column shroud lower panel (A).

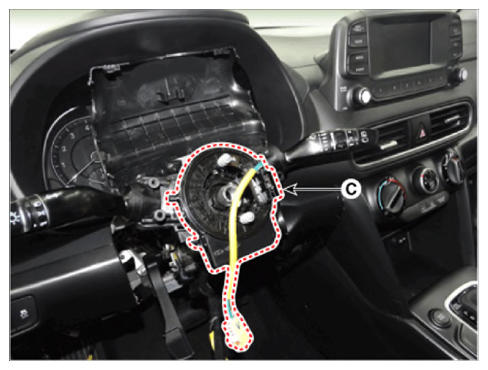

- Disconnect the connector (A), (B) and then remove the clock spring (C).
- Remove the multifunction switch.
(Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

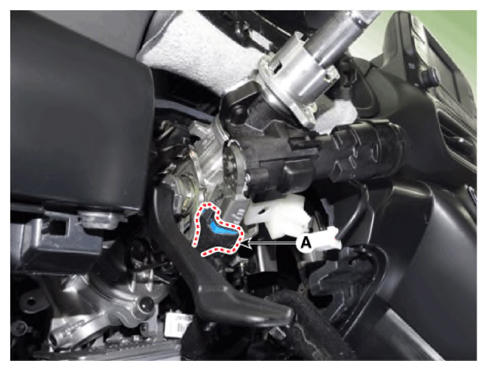

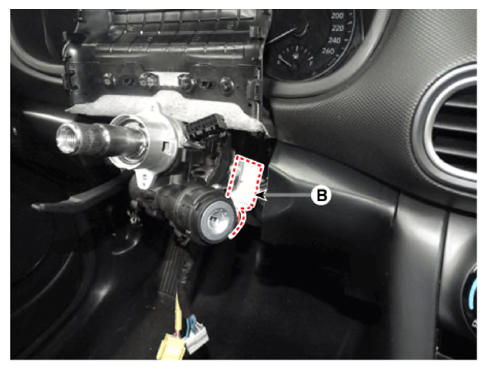

- Disconnect the ignition switch connector (A), (B).

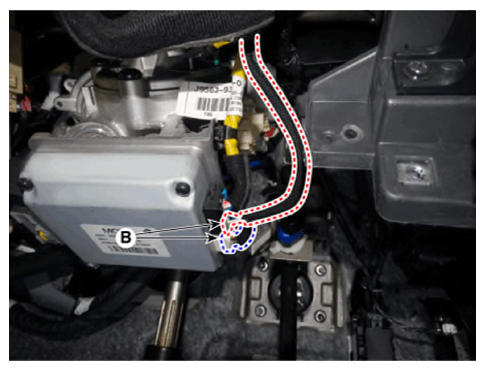

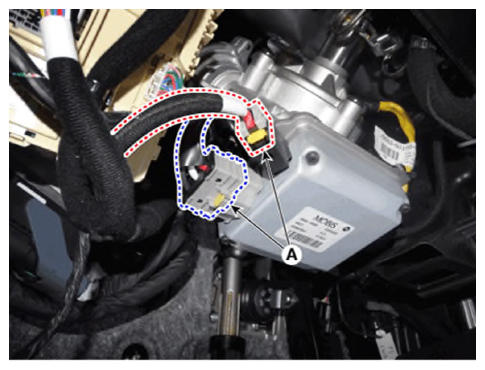

- Disconnect the MDPS ECU connector (A), (B).

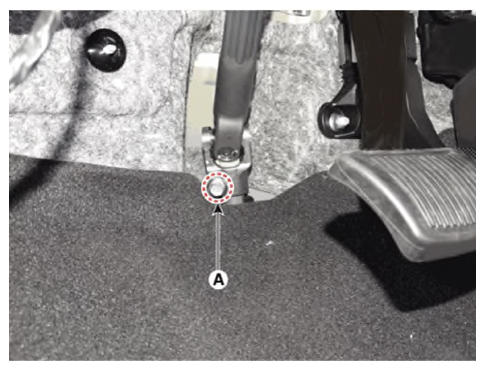

- Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque
M8 BOLT: 32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb-ft)
M10 BOLT: 49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)
NOTE:- Do not reuse the bolt.
- Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable.

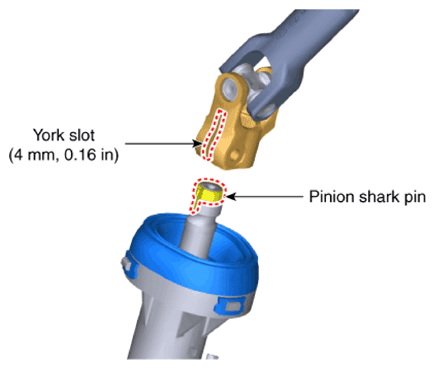

- When assembling, insert the shark pin into the universal joint york slot as shown in the illustration below.

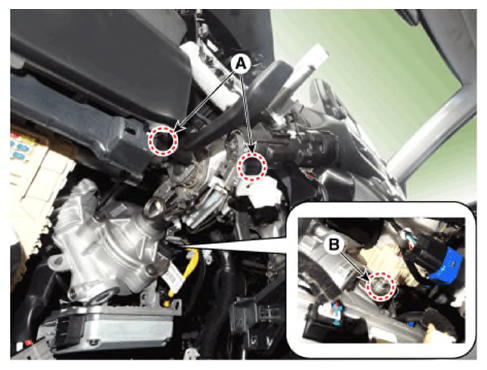

- Remove the MDPS assembly by loosening the mounting nuts (A) and bolt (B).
Tightening torque
- 25.0 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)
- 53.9 - 58.8 N.m (5.5 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)
