Repair Procedures: Disassembly

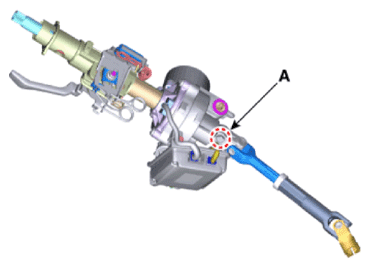

  1. Loosen the bolt (A) and then disconnect the universal joint assembly from the steering column assembly.

    Tightening torque:

    49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)

    G14715693Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the universal joint bolt.
  2. Reassembly is the reverse of the disassembly.
NOTE:

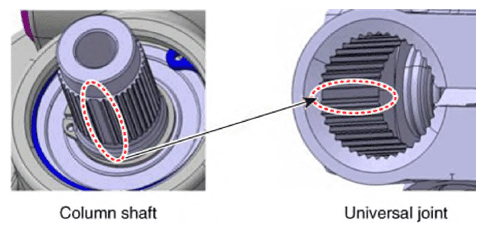

  • When assembling, match the gear teeth as shown in the illustration below.
G14715694Courtesy of HYUNDAI MOTOR AMERICA
