Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. To install, reverse the removal procedure.
NOTE:
  • Check the cleanliness of the pressure sensor before installation.

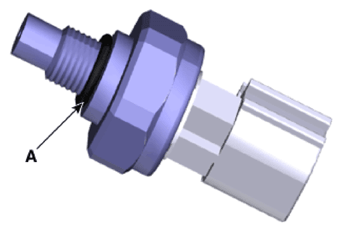

  • Check the pressure sensor O-ring (A).
    G14715068Courtesy of HYUNDAI MOTOR AMERICA

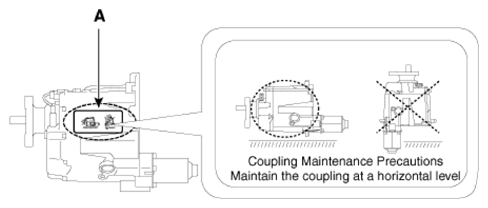

  • Keep it level with the sticker on the top of the coupling.
    G14715069Courtesy of HYUNDAI MOTOR AMERICA
