Door Outside Handle

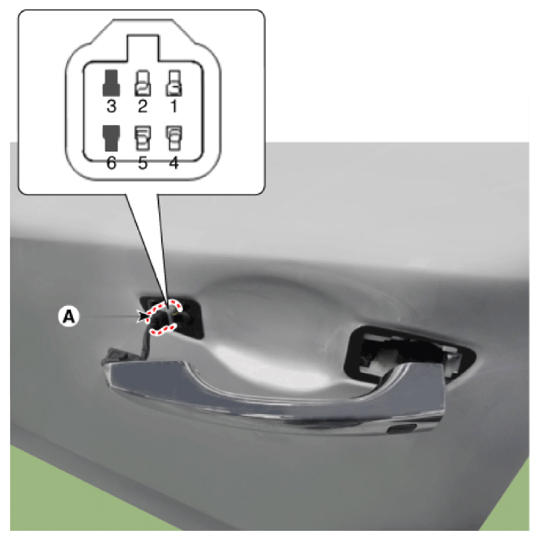

  1. Disconnect the front door outside handle connector (A).
    G14712996Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between terminals No 3 and No 6.
G14712997Courtesy of HYUNDAI MOTOR AMERICA
No Description
1 Door antenna (+)
2 Pocket lamp LED (+)
3 Door lock/unlock button switch
4 Door antenna (-)
5 Pocket lamp LED (-)
6 Door lock/unlock button switch ground
G14712998Courtesy of HYUNDAI MOTOR AMERICA
