Connector And Terminal Information

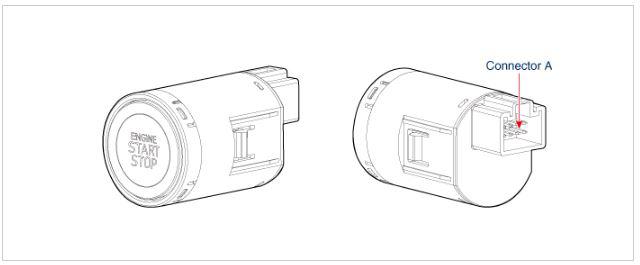

G15463286Courtesy of HYUNDAI MOTOR AMERICA
Connector A No Description
G15463287Courtesy of HYUNDAI MOTOR AMERICA
 1 SSB switch 1 (OUT)
2 -
3 SSB illumination (+)
4 Immobilizer power
5 -
6 Ground
7 SSB switch 2
8 SSB illumination (-)
9 -
10 Immobilizer power
