Connector Assembly Status Test

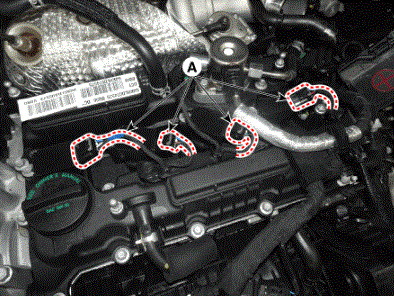

  1. Remove the connector (A) and reinstall it.
G16176616Courtesy of HYUNDAI MOTOR AMERICA

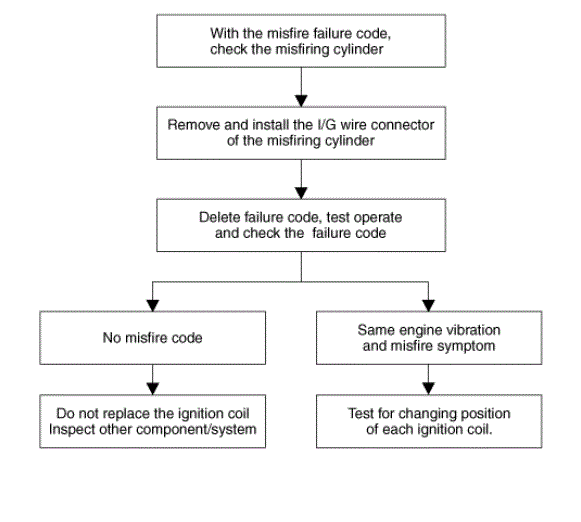

G16176617Courtesy of HYUNDAI MOTOR AMERICA
