Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the drive belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

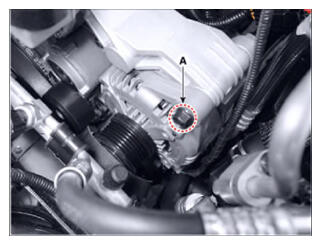

- Loosening the alternator upper mounting bolt (A).
Tightening torque:
49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
- Lift the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
- Remove the roll road bracket.
(Refer to Engine Mechanical System - "ENGINE MOUNTING ")
- Remove the compressor.
(Refer to Heating, Ventilation and Air Conditioning - "COMPRESSOR ")

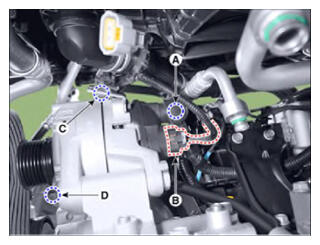

- Remove the alternator "B" terminal mounting nut (A), and seperate the cable.
- Disconnect the alternator connector (B), and then seperate the clip (C).
- Loosening the alternator lower mounting bolt (D), and then remove the alternator.
"B" terminal mounting nut :9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib.ft)
Alternator lower mounting bolt :49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
