Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery (+) terminal.

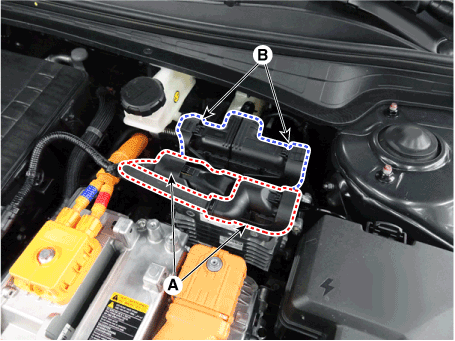

- Disconnect the TCM connector (A) and the ECM connector (B).

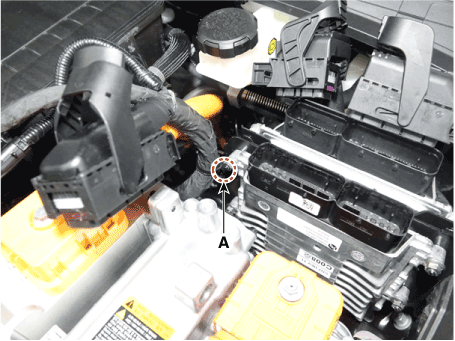

- Separate the wiring clip (A).

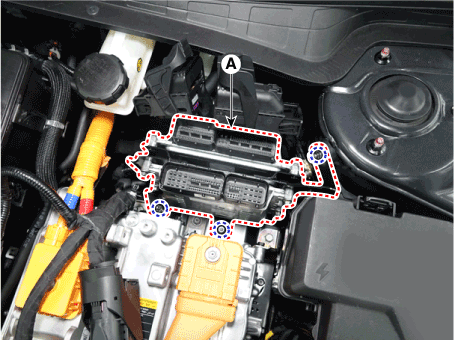

- Loosen the nuts and then removing the TCM & ECM bracket (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

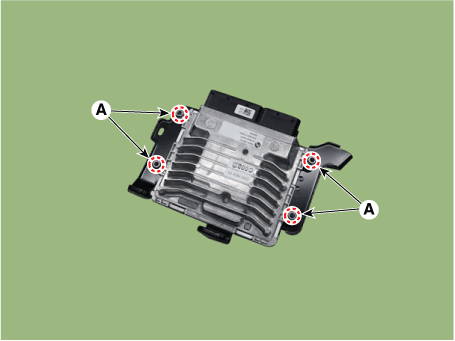

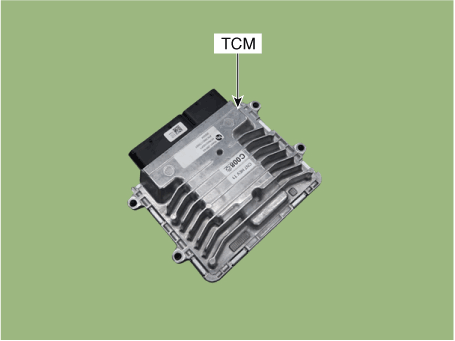

- Loosen the TCM bracket mounting nuts (A) and then removing the TCM.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
