Repair Procedures: Replacement

  1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

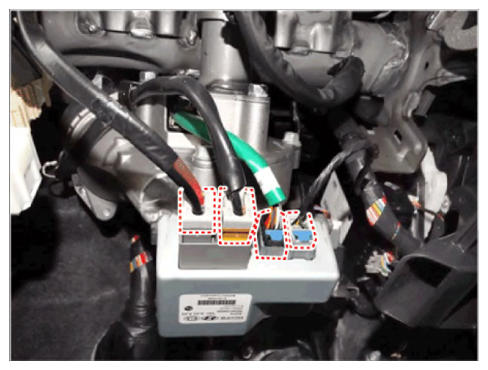

  3. Disconnect MDPS ECU connector.
    G14077633Courtesy of HYUNDAI MOTOR AMERICA

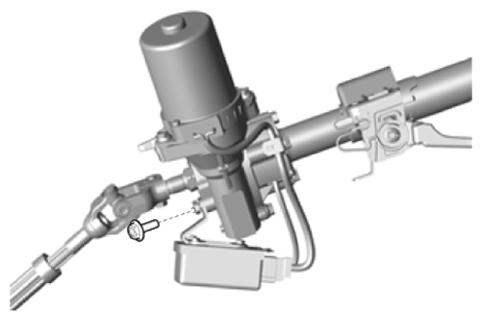

  4. Loosen the MDPS ECU bracket bolts and then remove the MDPS ECU.
    G14077634Courtesy of HYUNDAI MOTOR AMERICA
