Repair Procedures: Disassembly

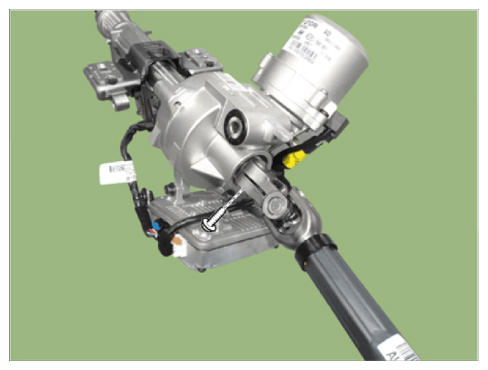

  1. Loosen the bolt (A) and then disconnect the universal joint assembly from the steering column assembly.

    Tightening torque:

    49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)

    G14077662Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the universal joint bolt.

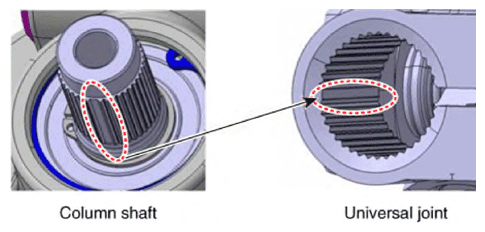

    • When assembling, match the gear teeth as shown in illustration below.
    G14077663Courtesy of HYUNDAI MOTOR AMERICA
  2. To reassembly, reverse the disassembly procedure.
  3. Reassembly is the reverse of the disassembly.
