Components & Components Location: Components

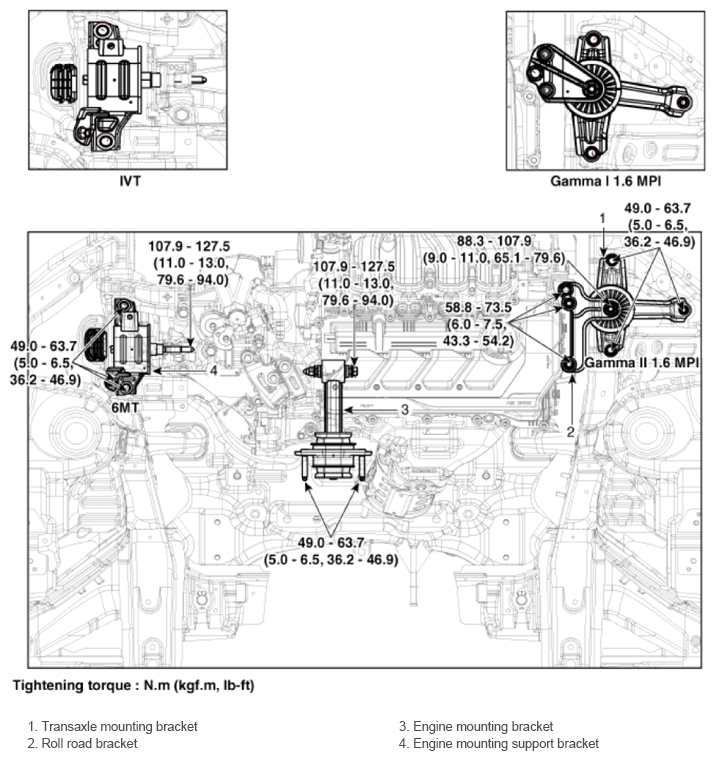

Fig 1: Engine Mounting Components Location With Torque Specification

G14693776

Courtesy of HYUNDAI MOTOR AMERICA
