Repair Procedures: Removal

NOTE:

Use fender covers to avoid damaging painted surfaces.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

Information

Mark all wiring connector and hoses to avoid misconnection.

Disconnect the battery negative terminal.
Remove the engine cover
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the coolant.
(Refer to Cooling System - "COOLANT ")
Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.
(Refer to Heating, Ventilation Air conditioning - "COMPRESSOR ")
Remove the air duct and air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the battery.
(Refer to Engine Electrical System - "BATTERY ")
Remove the engine control module (ECM).
(Refer to Engine Control/Fuel System - "ENGINE CONTROL MODULE (ECM) ")
Remove the battery tray.
(Refer to Engine Electrical System - "BATTERY ")

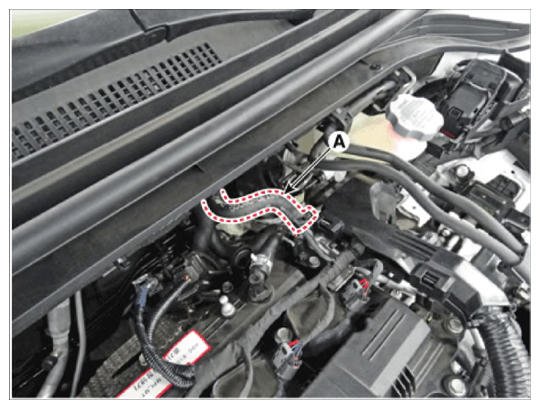

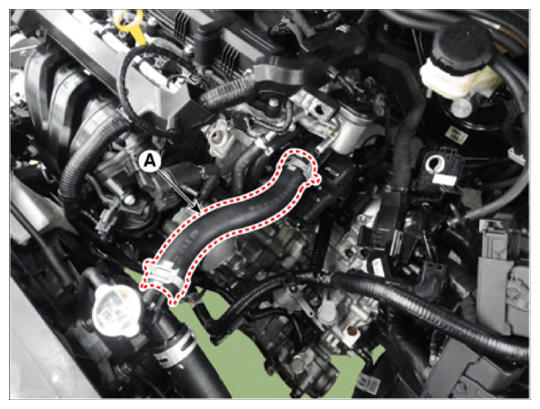

Disconnect the radiator upper hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

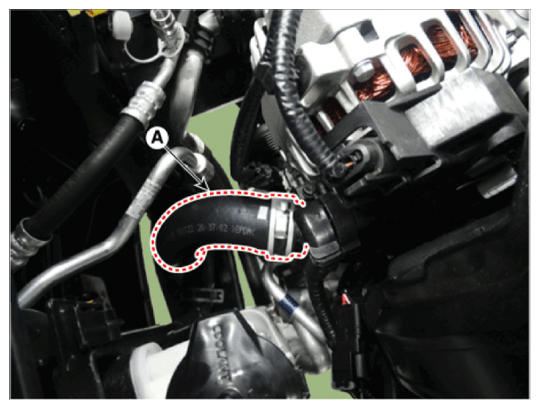

Disconnect the radiator lower hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

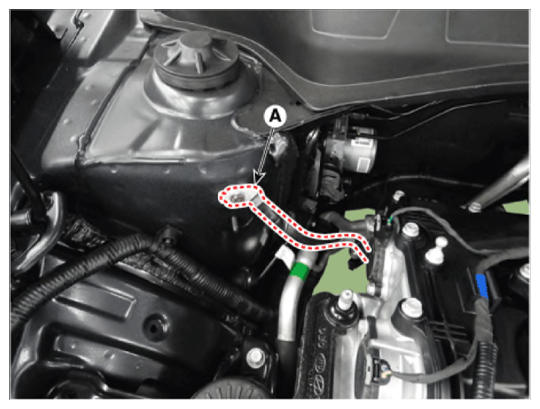

Disconnect the brake booster vacuum hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

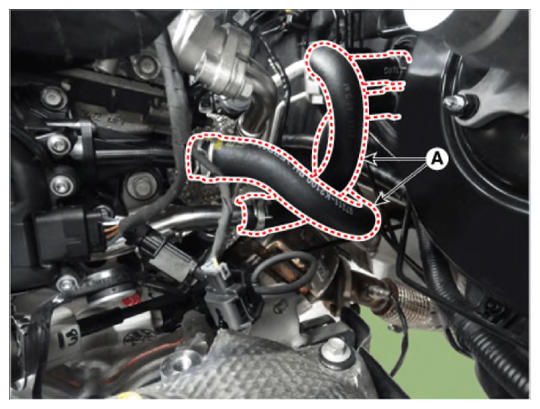

Disconnect the heater hoses (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the transaxle wire harness connectors and control cable from the transaxle.
(Refer to Intelligent Variable Transmission (IVT) System - "REPAIR PROCEDURES ")

(Refer to Manual Transaxle System - "MANUAL TRANSAXLE ")

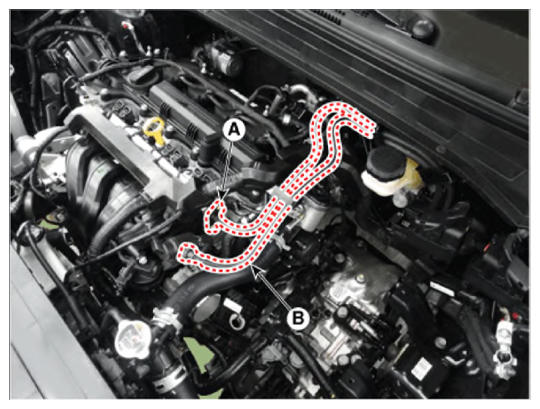

Disconnect the fuel hose (A) and purge control solenoid valve (PCSV) hose (B).

Courtesy of HYUNDAI MOTOR AMERICA

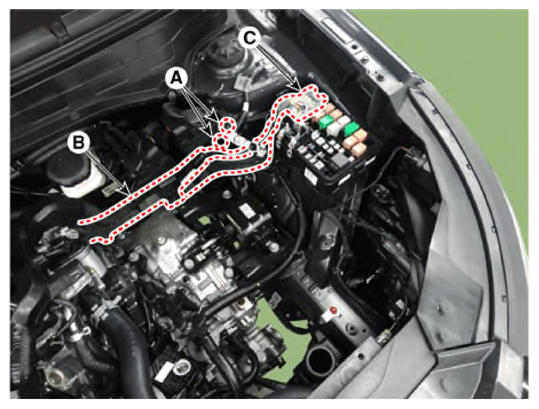

Disconnect the wiring harness from the engine room.

Remove the ground bolt (A).
Disconnect the wiring protector (B).

Disconnect the front harness connector (C).

Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

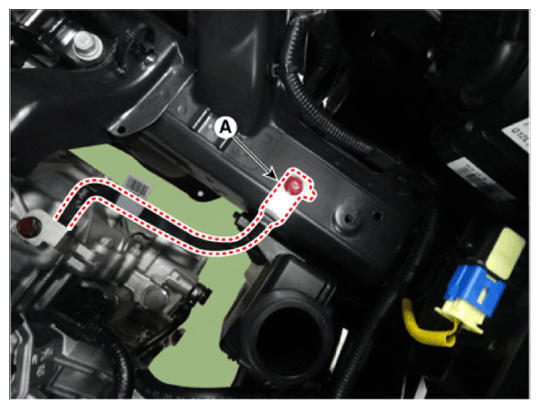

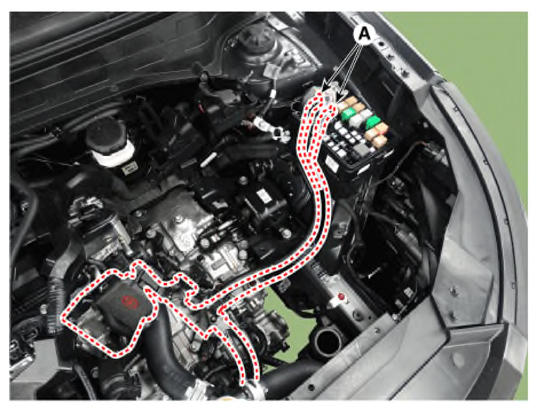

Disconnect the battery positive wirings (A).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the front muffler.
(Refer to Intake and Exhaust System - "MUFFLER ")

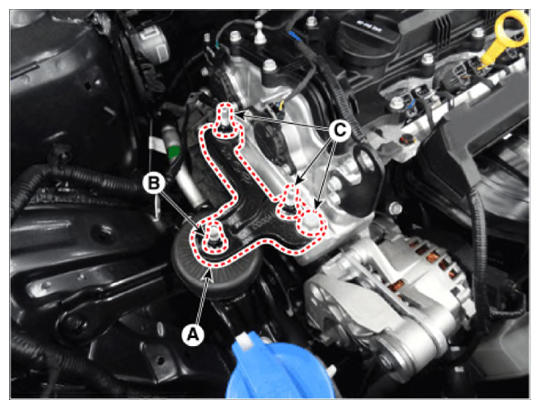

Remove the roll rod bracket (A).
Tightening torque

Bolt (B): 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Bolts (C): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the roll rod support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the steering U-joint mounting bolt.
(Refer to Steering System - "STEERING GEAR BOX ")
Remove the sub frame.
(Refer to Suspension System - "SUB FRAME ")

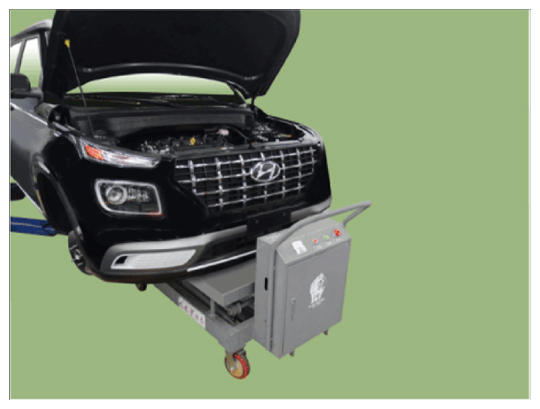

Support the Engine and Transaxle Assembly with a floor jack.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the engine mounting support bracket (A).
Tightening torque:

Bolt (B): 88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Bolt, Nuts (C): 58.8 - 73.6 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the engine ground (A).
Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

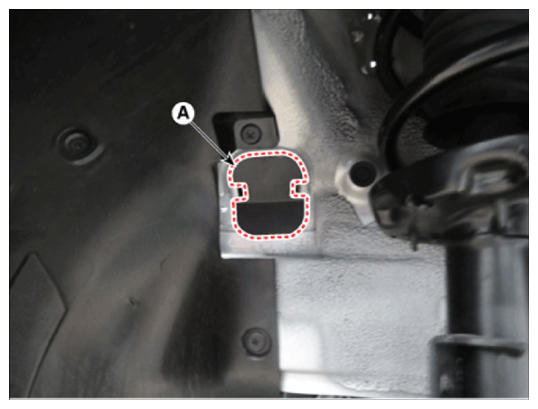

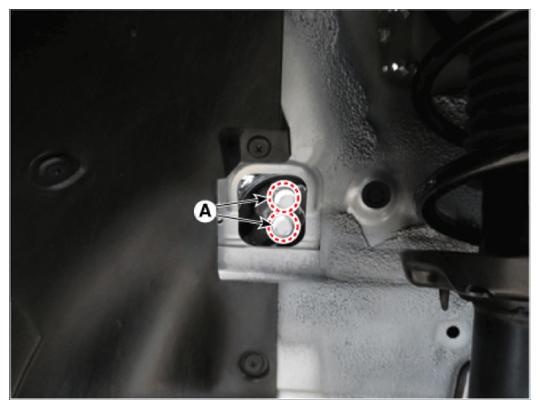

Remove the service cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
Support the Engine and Transaxle Assembly with a floor jack.

Courtesy of HYUNDAI MOTOR AMERICA

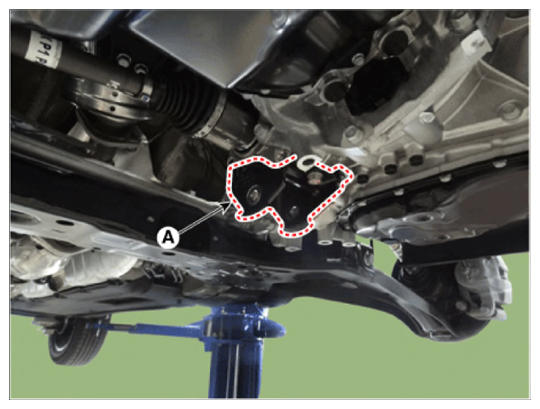

Remove the transaxle support bracket mounting bolts (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the transaxle ground cable (A).
Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

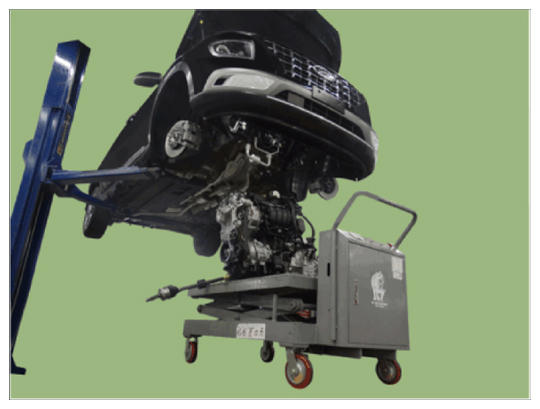

Remove the engine and transaxle assembly by lifting vehicle.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Before removing the engine and transaxle assembly, make sure hoses and wire connectors are disconnected.
When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.
