Repair Procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

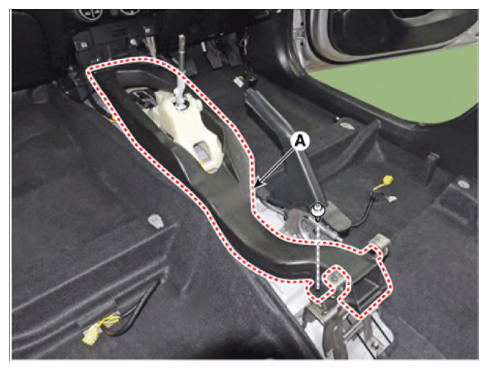

  4. Remove the air duct (A).
    G14695233Courtesy of HYUNDAI MOTOR AMERICA

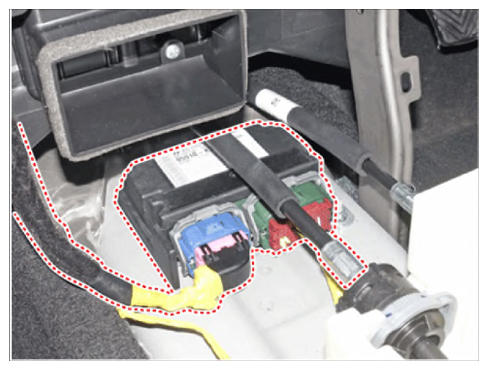

  5. Disconnect the SRSCM connectors.
    G14695234Courtesy of HYUNDAI MOTOR AMERICA

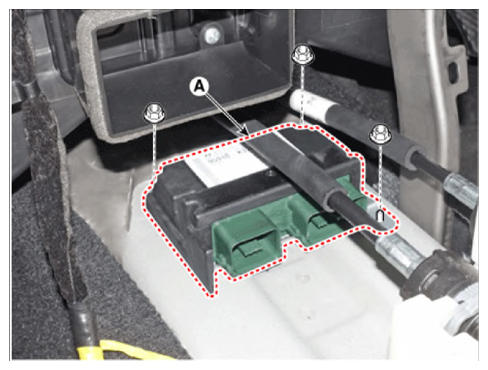

  6. Remove the SRSCM (A) after loosening the mounting nuts.
    G14695235Courtesy of HYUNDAI MOTOR AMERICA
