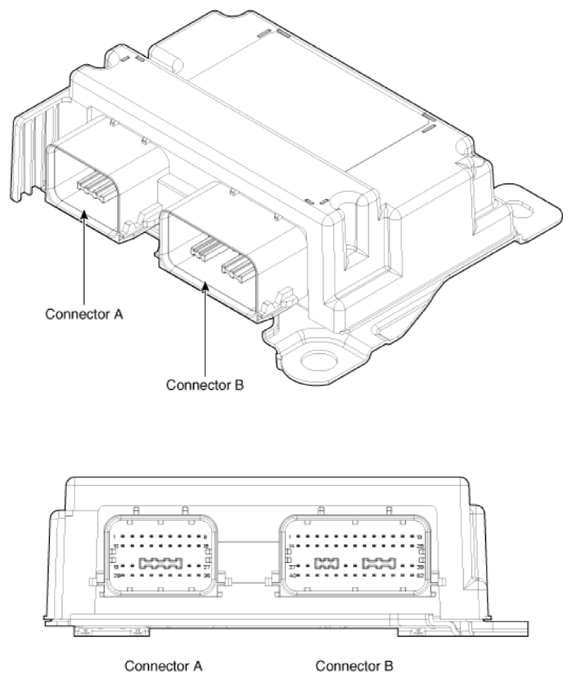

| 1 |
Driver airbag 2nd stage High (+) |
- |
| 2 |
Driver airbag 2nd stage Low (+) |
- |
| 3 |
Passenger airbag 2nd stage Low (+) |
- |
| 4 |
Passenger airbag 2nd stage High (+) |
- |
| 5 |
- |
- |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
Battery (+) |
- |
| 11 |
Crash Output |
- |
| 12 |
Passenger Airbag 1st Stage LOW (-) |
- |
| 13 |
Passenger Airbag 1st Stage HIGH (+) |
- |
| 14 |
- |
- |
| 15 |
- |
- |
| 16 |
Passenger airbag OFF lamp/Telltale lamp |
- |
| 17 |
Passenger airbag ON lamp |
Curtain Airbag Passenger LOW (-) |
| 18 |
- |
Curtain Airbag Passenger HIGH (+) |
| 19 |
Driver Airbag 1st HIGH (+) |
Curtain Airbag Driver HIGH (+) |
| 20 |
Driver Airbag 1st LOW (-) |
Curtain Airbag Driver LOW (-) |
| 21 |
- |
Side Airbag Front Passenger LOW (-) |
| 22 |
- |
Side Airbag Front Passenger HIGH (+) |
| 23 |
- |
Side Airbag Front Driver HIGH (+) |
| 24 |
- |
Side Airbag Front Driver LOW (-) |
| 25 |
- |
Adaptive load limiter, passenger LOW (-) |
| 26 |
C-CAN LOW (-) |
Adaptive load limiter, passenger HIGH (+) |
| 27 |
C-CAN HIGH (+) |
Retractor Pretensioner Front Driver LOW (-) |
| 28 |
IGN 1 |
Retractor Pretensioner Front Driver HIGH (+) |
| 29 |
Front Impact Sensor Driver_ HIGH (+) |
- |
| 30 |
Front Impact Sensor_Driver LOW (-) |
- |
| 31 |
Front Impact Sensor_Passenger LOW (-) |
- |
| 32 |
Front Impact Sensor_Passenger HIGH (+) |
Retractor Pretensioner Front Passenger HIGH (+) |
| 33 |
- |
Retractor Pretensioner Front Passenger LOW (-) |
| 34 |
- |
- |
| 35 |
L-CAN LOW (-) |
- |
| 36 |
L-CAN HIGH (+) |
- |
| 37 |
|
- |
| 38 |
Adaptive load limiter, driver LOW (-) |
| 39 |
Adaptive load limiter, driver HIGH (+) |
| 40 |
Ground |
| 41 |
- |
| 42 |
- |
| 43 |
- |
| 44 |
- |
| 45 |
- |
| 46 |
- |
| 47 |
Side Impact Sensor Front Driver HIGH (+) |
| 48 |
Side Impact Sensor Front Driver LOW (-) |
| 49 |
Side Impact Sensor Front Passenger LOW (-) |
| 50 |
Side Impact Sensor Front Passenger HIGH (+) |
| 51 |
- |
| 52 |
- |
