Occupant Classification System (OCS) Unit

  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the front passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

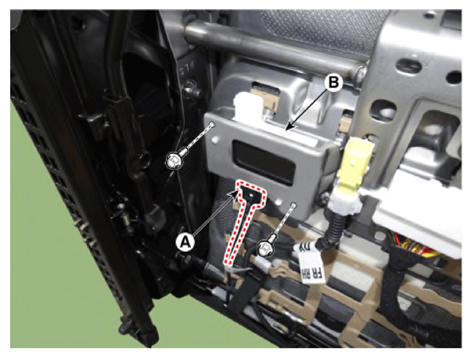

  3. Disconnect the connector (A) and then remove the OCS unit (B) after loosening the mounting screws.
    G14695249Courtesy of HYUNDAI MOTOR AMERICA
