Home >> Hyundai >> 2021 >> Venue SEL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (4 Of 6) >> DTC P0499-00: EVAP System Vent Valve Control Circuit High >> Troubleshooting >> Diagnostic Flowchart

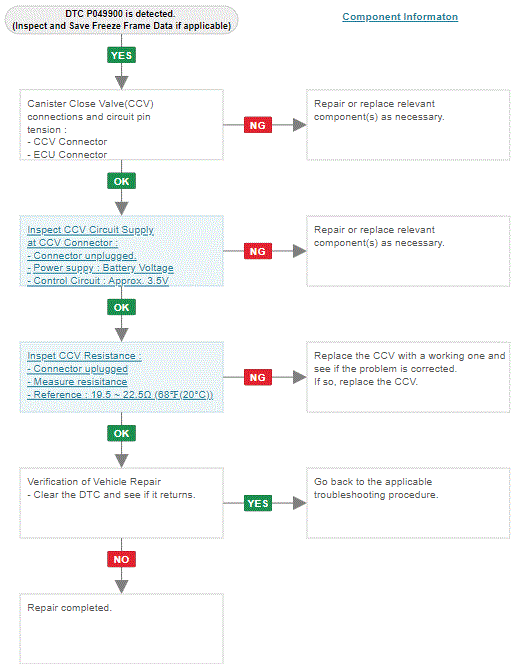

Diagnostic Flowchart

G14703348Courtesy of HYUNDAI MOTOR AMERICA
