Home >> Hyundai >> 2021 >> Venue SEL >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (4 Of 6) >> DTC P0462-00: Fuel Level Sensor 'A' Circuit Low Input >> Troubleshooting >> Diagnostic Flowchart

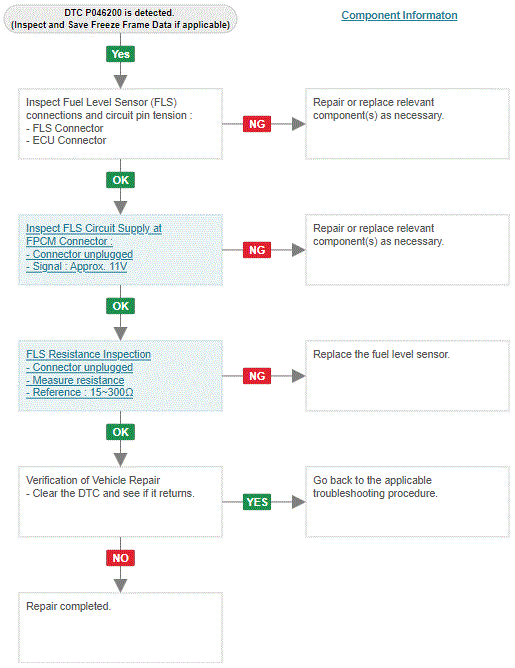

Diagnostic Flowchart

G14703344Courtesy of HYUNDAI MOTOR AMERICA
