Home >> Hyundai >> 2021 >> Venue SEL >> Repair and Diagnosis >> Engine Mechanical >> Intake And Exhaust System >> Muffler And Catalytic Converter >> Components & Components Location >> Components

Components & Components Location: Components

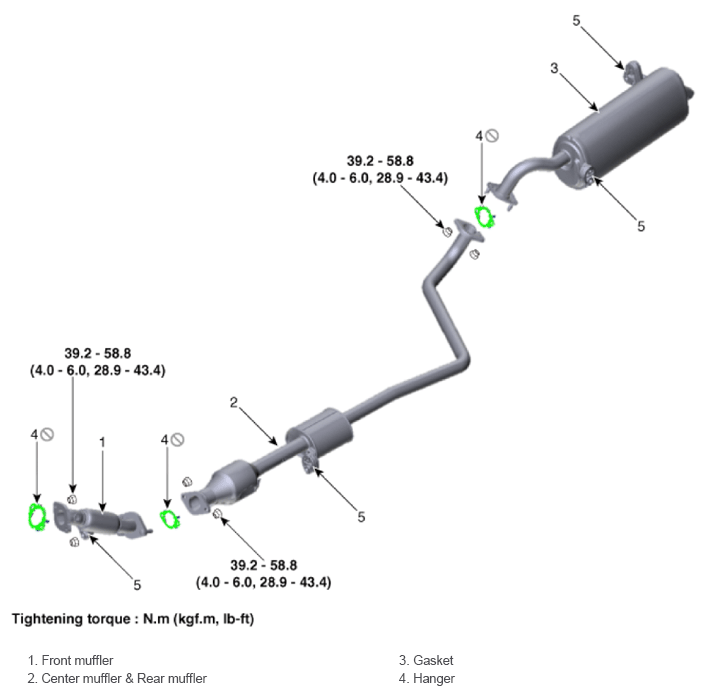

Fig 1: Muffler And Catalytic Converter Components Location With Torque Specification

G14694162

Courtesy of HYUNDAI MOTOR AMERICA
