(Intelligent Variable Transmission (IVT) System)

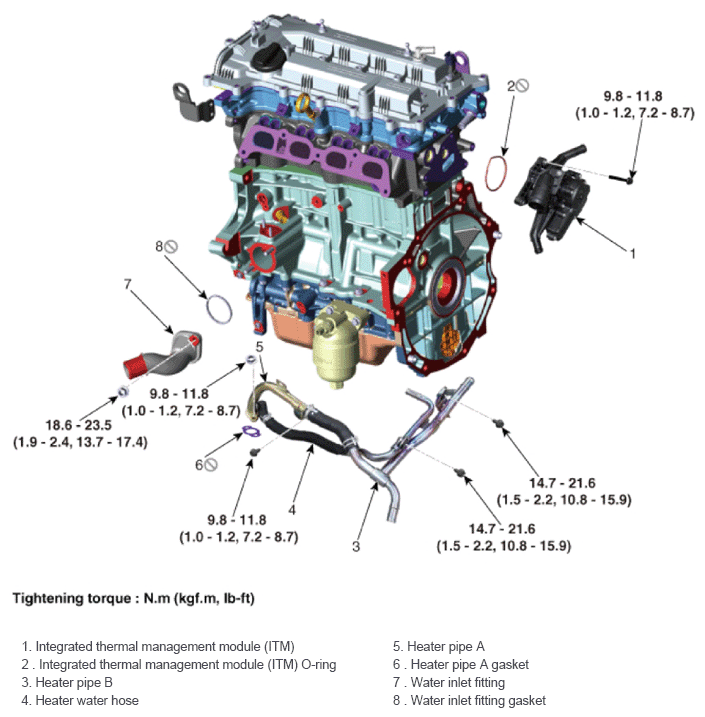

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification (Intelligent Variable Transmission System)
G14694072Courtesy of HYUNDAI MOTOR AMERICA
