Check The Ground Circuit

  1. Disconnect the connector from the ABS control module.

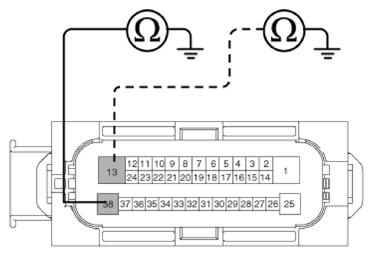

  2. Check for continuity between terminals 13, 38 of the ABS control module harness side connector and ground point.
    G14695474Courtesy of HYUNDAI MOTOR AMERICA
  3. Is there continuity?

    YES

    • Check the wheel speed sensor circuit.

    NO

    • Repair an open in the wire and ground point.
