Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Take care not to scratch the body surface.

1. Remove the front door window glass.

   (Refer to Front Door - "FRONT DOOR WINDOW GLASS ")

2. Remove the front door outside handle.

   (Refer to Front Door - "FRONT DOOR OUTSIDE HANDLE ")

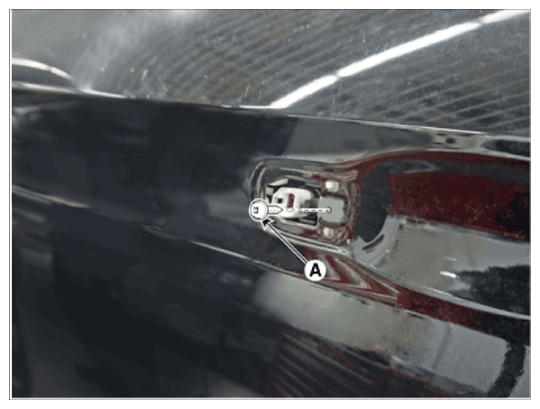

3. Loosen the front door outside handle screw (A).

   Courtesy of HYUNDAI MOTOR AMERICA

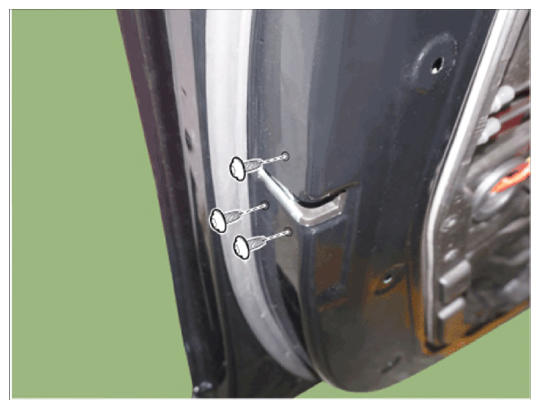

4. Loosen the front door latch screws.

   Tightening torque:

   7.8 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.8 - 8.0 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

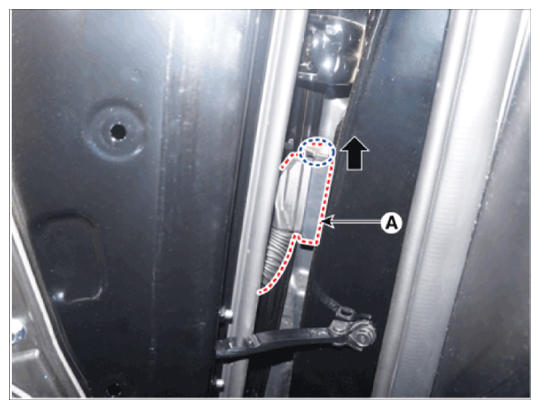

5. Press the lock pin and separate the front door main connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

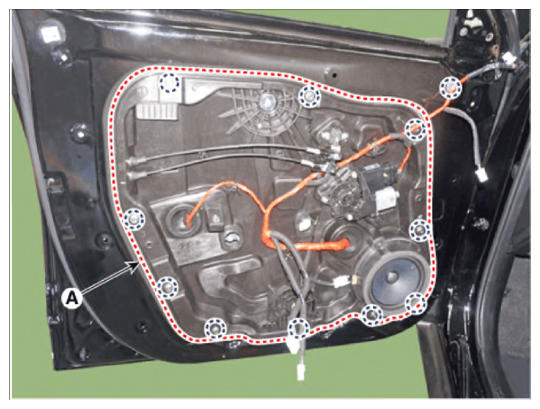

6. Loosen the front door module bolts and remove the front door module (A).

   Tightening torque:

   7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

7. Disconnect the various connector front the front door module and separate the front door module wiring harness (A).
8. Remove the front door latch assembly.

   (Refer to Front Door - "FRONT DOOR LATCH ASSEMBLY ")

9. Remove the front power window motor.

   (Refer to Body Electrical System - "POWER WINDOW MOTOR ")

10. To install, reverse removal procedure.

    Information

    • Make sure connectors are connected properly and each rod is connected securely.
    • Make sure the door locks/unlocks and opens/closes properly.
