Repair Procedures: Removal
- Remove the manual transaxle assembly.
(Refer to Manual Transaxle System - "MANUAL TRANSAXLE ")

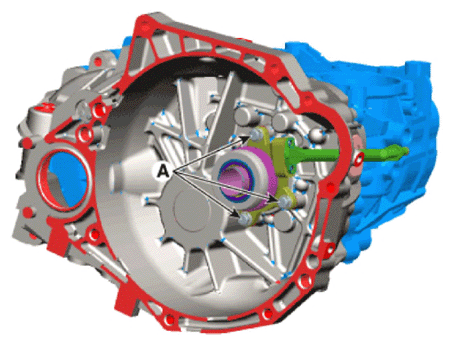

- Loosen the bolts and then removing the concentric slave cylinder assembly (A) from the clutch housing.
Tightening torque:
19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.2 - 19.5 lb-ft)
