Components & Components Location: Components

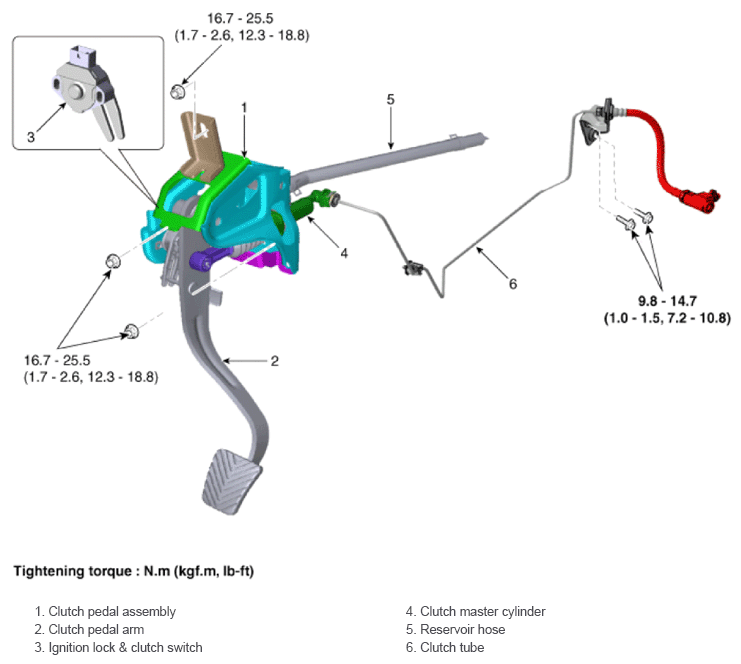

Fig 1: Clutch Tube Components Location With Torque Specification

G14694628

Courtesy of HYUNDAI MOTOR AMERICA
