Repair Procedures: Removal

  1. Turn OFF ignition switch and disconnect the negative (-) battery cable.
  2. Remove the air cleaner and air duct.

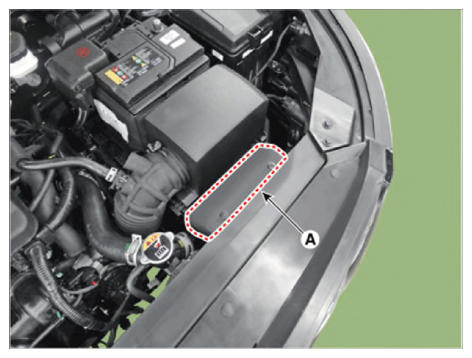

    1. Remove the air duct (A).
      G14694766Courtesy of HYUNDAI MOTOR AMERICA

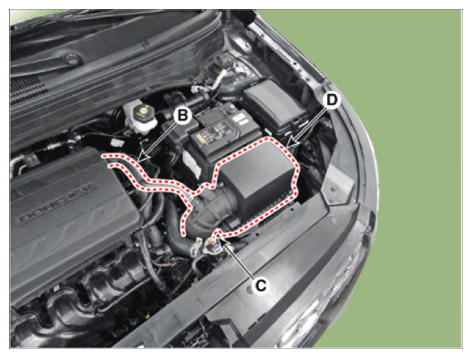

    2. Disconnect the breather hose (B) and air intake hose (C).
    3. Remove the air cleaner assembly (D).

      Tightening torque:

      Hose clamp bolt (C):

      2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb-ft)

      Air cleaner assembly bolts (D):

      3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

      G14694767Courtesy of HYUNDAI MOTOR AMERICA

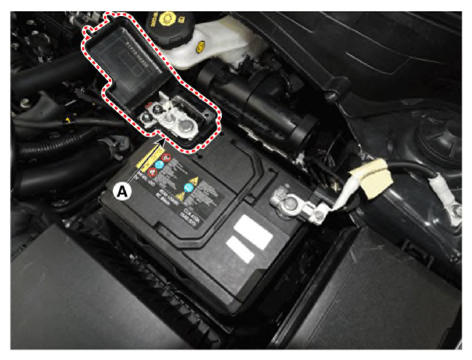

  3. Remove the battery (+) terminal (A).

    Tightening torque:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

    G14694768Courtesy of HYUNDAI MOTOR AMERICA

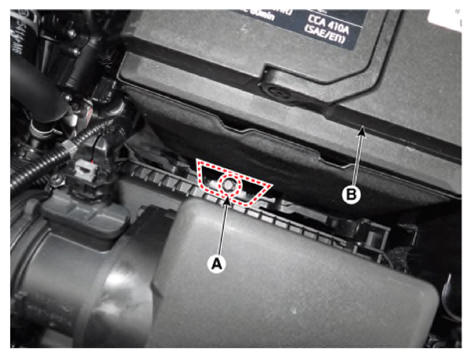

  4. Remove the battery mounting bracket (A) and the battery (B).

    Tightening torque:

    9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6-10.3 lb-ft)

    G14694769Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the ECM.

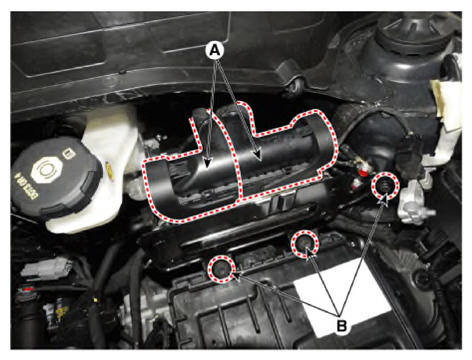

    1. Disconnect the ECM connector (A).
    2. Loosen the mounting bolts (B) and then removing the ECM bracket assembly.

      Tightening torque:

      9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14694770Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the battery tray.

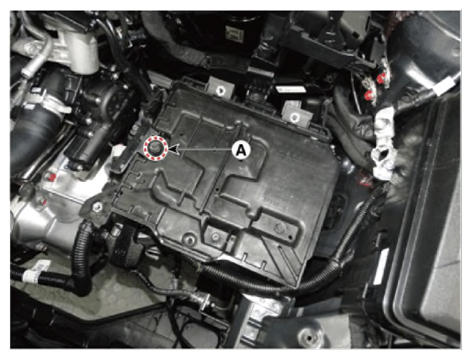

    1. Loosen the mounting bolt (A) and then removing the battery (+) terminal bracket.

      Tightening torque:

      8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb-ft)

      G14694771Courtesy of HYUNDAI MOTOR AMERICA

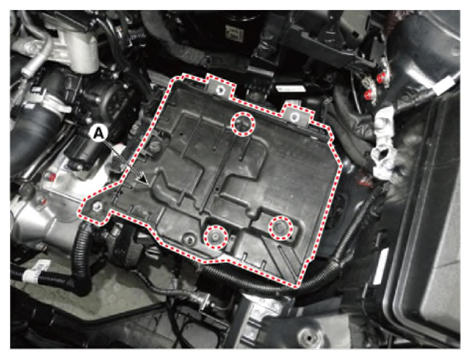

    2. Loosen the bolts and then removing the battery tray (A).

      Tightening torque:

      8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G14694772Courtesy of HYUNDAI MOTOR AMERICA

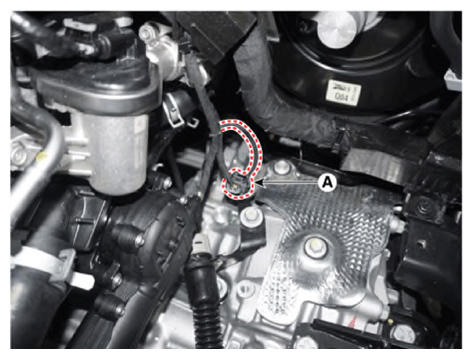

  7. Disconnect the driven pulley speed sensor connector (A).
    G14694773Courtesy of HYUNDAI MOTOR AMERICA

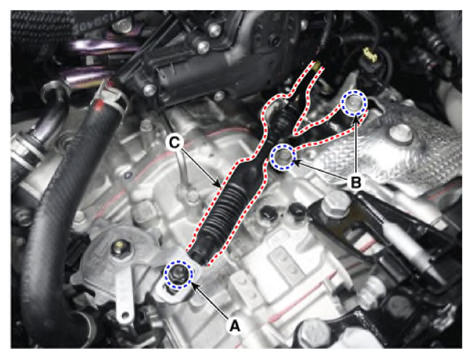

  8. Loosen the nut (A), bolts (B) and then removing the shift cable (C).

    Tightening torque:

    1. 9.8-13.7 Nm (1.0-1.4 kgf.m, 7.2-10.1 lb-ft)
    2. 14.7 - 21.6 Nm (1.5 - 2.2 kgf.m, 10.9-15.9 lb-ft)
    G14694774Courtesy of HYUNDAI MOTOR AMERICA

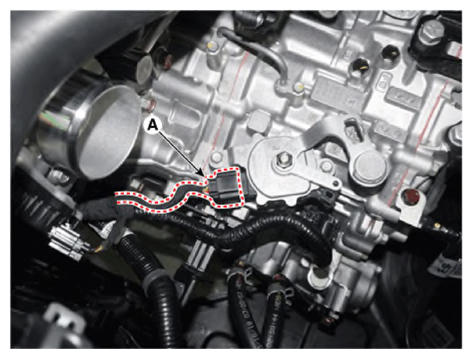

  9. Disconnect the position switch connector (A).
    G14694775Courtesy of HYUNDAI MOTOR AMERICA

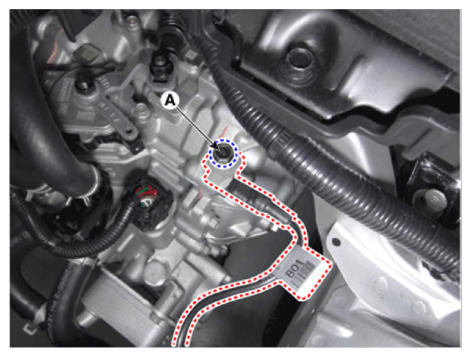

  10. Remove the ground line after removing the bolt (A).

    Tightening torque:

    26.5 - 32.4 Nm (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb-ft)

    G14694776Courtesy of HYUNDAI MOTOR AMERICA

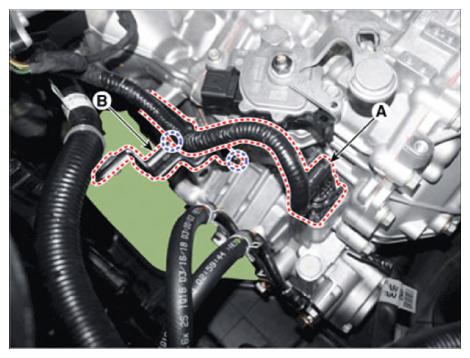

  11. Disconnect the main connector (A).
  12. Loosen the bolts and then removing the wiring bracket (B).
    G14694777Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

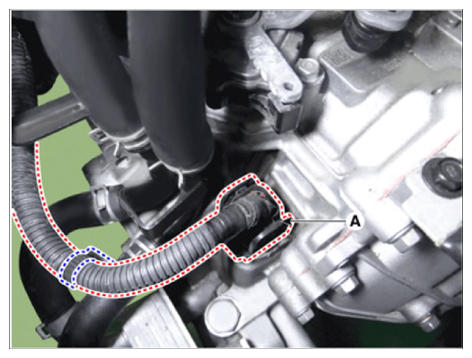

    • After detaching the main connector, wrap a plastic bag around the connector to prevent coolant from getting into it.
      G14694778Courtesy of HYUNDAI MOTOR AMERICA

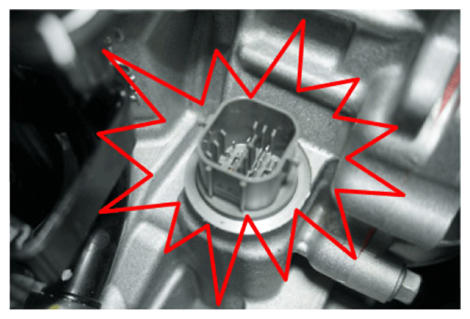

    • If coolant gets into the connector, corrosion may occur inside the connector, thus causing an open/short circuit. In this case, trouble codes and shift failure may also occur.
      G14694779Courtesy of HYUNDAI MOTOR AMERICA

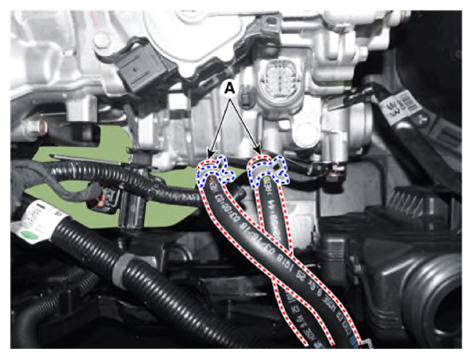

  13. Remove the clamp and then separate the IVTF cooler hose (A).
    G14694780Courtesy of HYUNDAI MOTOR AMERICA

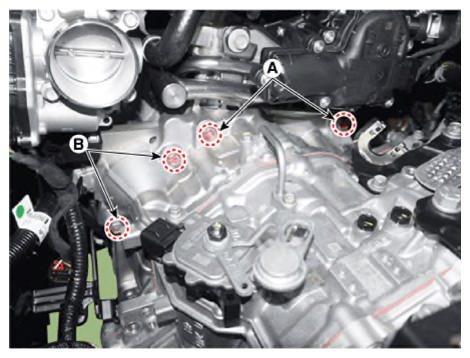

  14. Remove the transmission upper mounting bolts (A) and the starter mounting bolt (B).

    Tightening torque:

    1. 42.2 - 53.9 Nm (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
    2. 49.0 - 63.7 Nm (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
    G14694781Courtesy of HYUNDAI MOTOR AMERICA

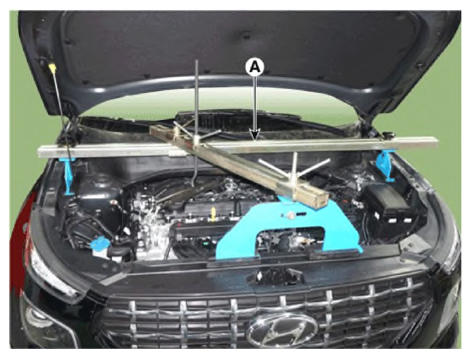

  15. Assemble the engine support fixture on the engine room.
  16. Using the engine support fixture (A), hold the engine and transmission assembly safely.
    G14694782Courtesy of HYUNDAI MOTOR AMERICA

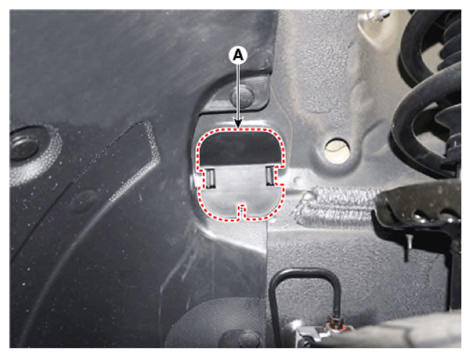

  17. Remove the dust cover (A).
    G14694783Courtesy of HYUNDAI MOTOR AMERICA

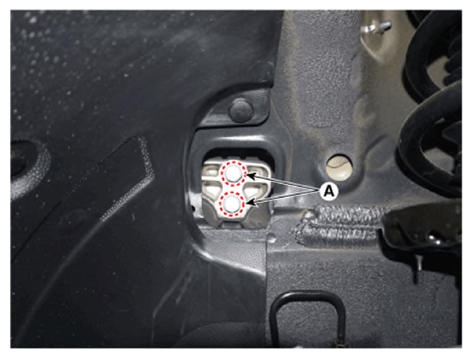

  18. Remove the Intelligent Variable Transmission (IVT) support bracket mounting bolts (A).

    Tightening torque:

    98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

    G14694784Courtesy of HYUNDAI MOTOR AMERICA

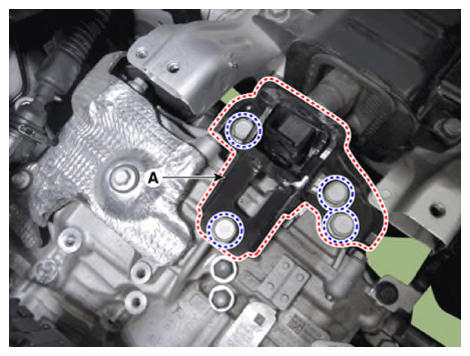

  19. Remove the IVT support bracket (A).

    Tightening torque:

    58.8 - 78.5 Nm (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb-ft)

    G14694785Courtesy of HYUNDAI MOTOR AMERICA
  20. Remove the under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  21. Remove the drive shaft assembly.

    (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

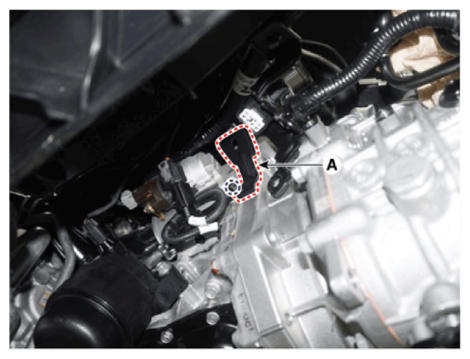

  22. Remove the wiring mounting bolt (A).
    G14694786Courtesy of HYUNDAI MOTOR AMERICA

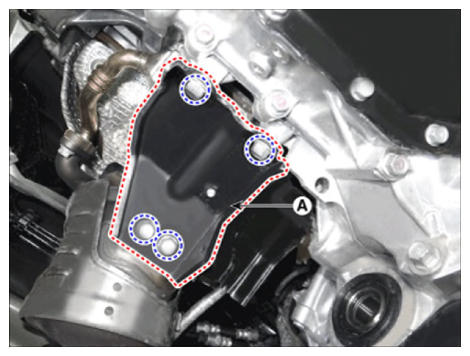

  23. Remove the exhaust manifold stay (A).

    Tightening torque:

    39.2 - 49.0 Nm (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)

    G14694787Courtesy of HYUNDAI MOTOR AMERICA

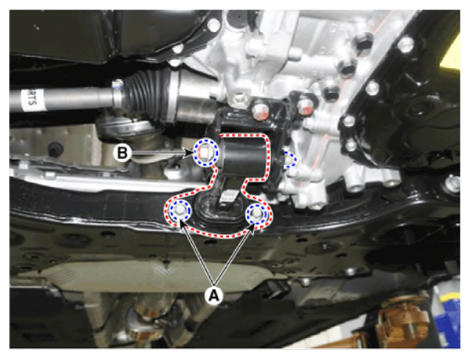

  24. Remove the roll rod bracket (C) after loosening the bolts (A, B).

    Tightening torque:

    1. 107.9 - 127.5 Nm (5.0 - 6.5 kgf.m, 79.6 - 94.0 lb-ft)
    2. 49.0 - 63.7 N.m (11.0-13.0 kgf.m, 36.2 - 47.0 lb-ft)
    G14694788Courtesy of HYUNDAI MOTOR AMERICA

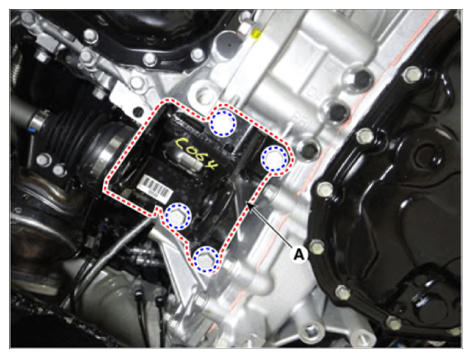

  25. Remove the roll rod support bracket (A).

    Tightening torque:

    49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

    G14694789Courtesy of HYUNDAI MOTOR AMERICA

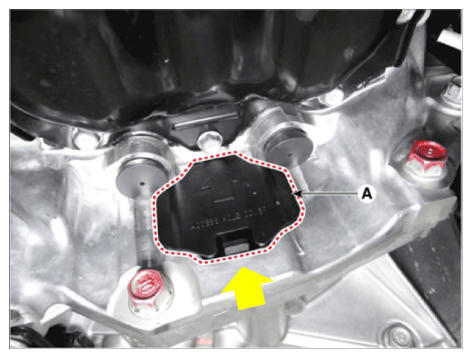

  26. Remove the cover (A).
    G14694790Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

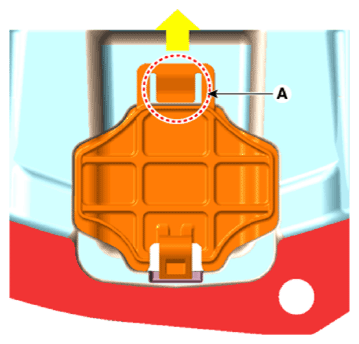

    • When installing the cover, attach the fixing hook (A) so that it is inserted inside.
      G14694791Courtesy of HYUNDAI MOTOR AMERICA

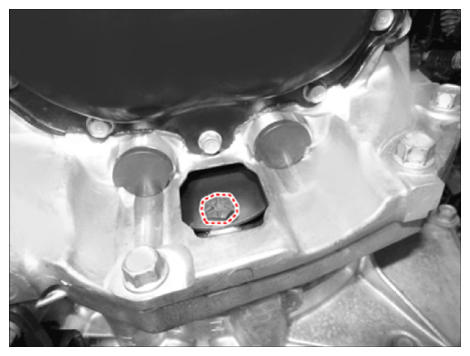

  27. Remove the torque converter mounting bolts (A) by rotating the crankshaft.

    Tightening torque:

    45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb-ft)

    G14694792Courtesy of HYUNDAI MOTOR AMERICA
  28. Support the transmission safely on a jack.

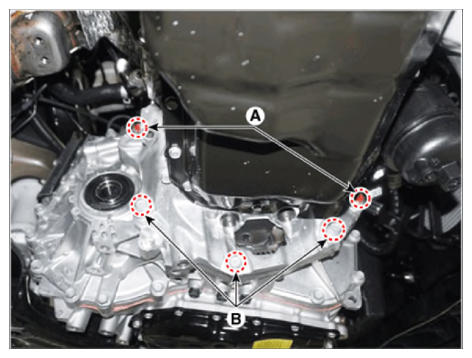

  29. Remove the starter mounting bolt (A) and transmission lower mounting bolts (B, C).

    Tightening torque:

    1. 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb-ft)
    2. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
    G14694793Courtesy of HYUNDAI MOTOR AMERICA
  30. After separating the transmission from the engine, remove the transmission by lowering the jack slowly.
    NOTE:
    • Be careful not to damage other nearby systems or parts when removing the transmission assembly.
