Home >> Hyundai >> 2021 >> Venue SE >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Intelligent Variable Transmission (IVT) >> Components & Components Location >> Components

Components & Components Location: Components

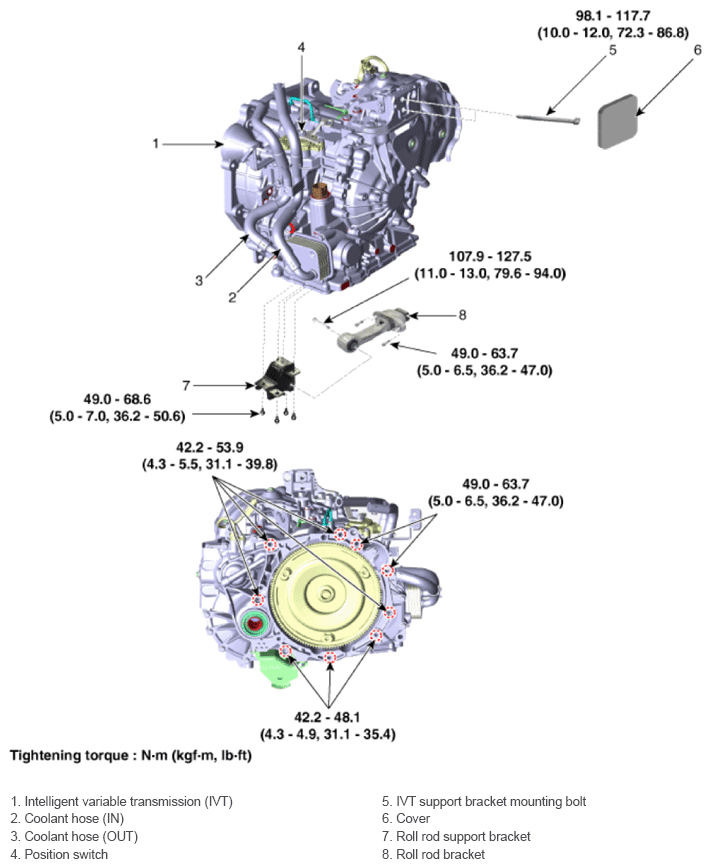

Fig 1: Intelligent Variable Transmission Components Location With Torque Specification

G14694764

Courtesy of HYUNDAI MOTOR AMERICA
