Repair Procedures: Inspection

  1. Measure a resistance of NTC and Heated pad.
    • NTC resistance - 10.0 KΩ ± 3% (25°C)

      8.875 ~ 11.27 KΩ (23°C ~ 27°C)

    • Heated pad resistance - 1.90 Ω ~ ± 0.2 Ω (22°C)
  2. Measure a temperature.
    • The temperature of wheel surface grip must rise from -20°C to 20°C within 6 minute.
    • The temperature of wheel surface grip must keep 38°C ± 4°C after 25 minute.

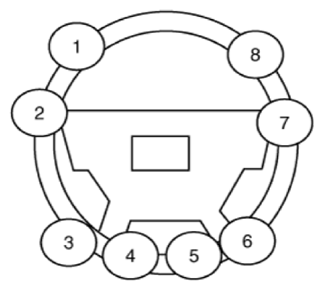

    • 1 to 8 All measuring points.
    G14695150Courtesy of HYUNDAI MOTOR AMERICA
  3. Check for continuity between the terminals in each heated steering switch.
    G14695151Courtesy of HYUNDAI MOTOR AMERICA
