Repair Procedures: Removal

Disconnect the battery negative terminal.

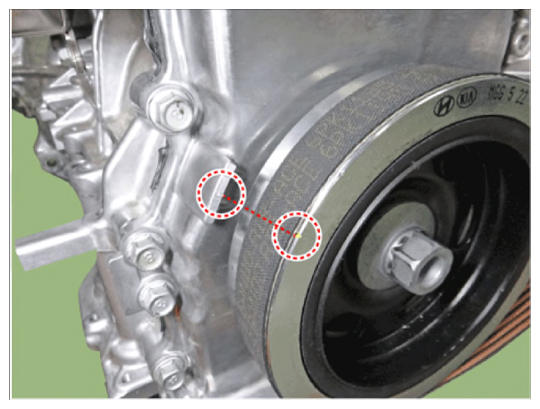

Turn the crankshaft damper pulley clockwise, and align its groove with the timing mark of the timing chain cover.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")

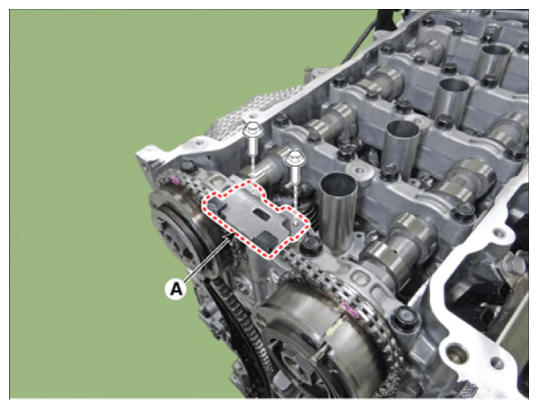

Remove the cam to cam guide (A).

Courtesy of HYUNDAI MOTOR AMERICA

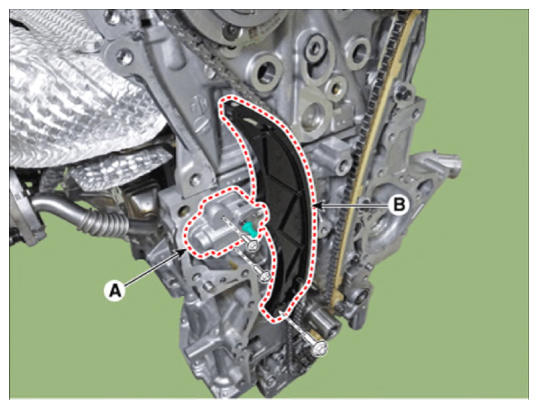

Remove the timing chain tensioner (A) and remove the timing chain tensioner arm (B).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Before the removal of timing chain tensioner, compress tensioner piston then remove the tensioner after fixing with fixing pin (A).
Courtesy of HYUNDAI MOTOR AMERICA

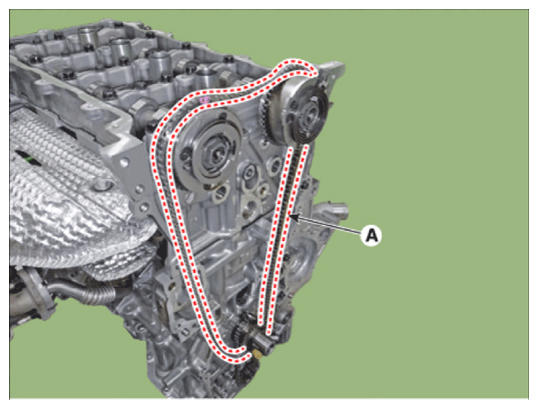

Remove the timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA

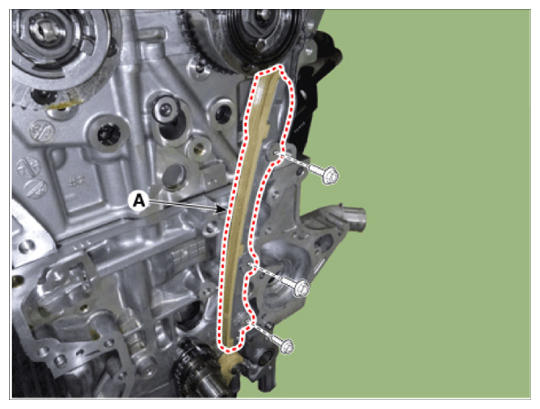

Remove the timing chain guide (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the oil pump chain.
(Refer to Lubrication System - "OIL PUMP ")

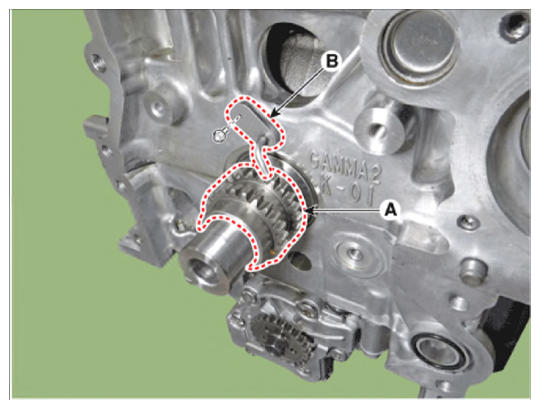

Remove the crankshaft sprocket (A) and timing chain oil jet (B).
