Components & Components Location: Components

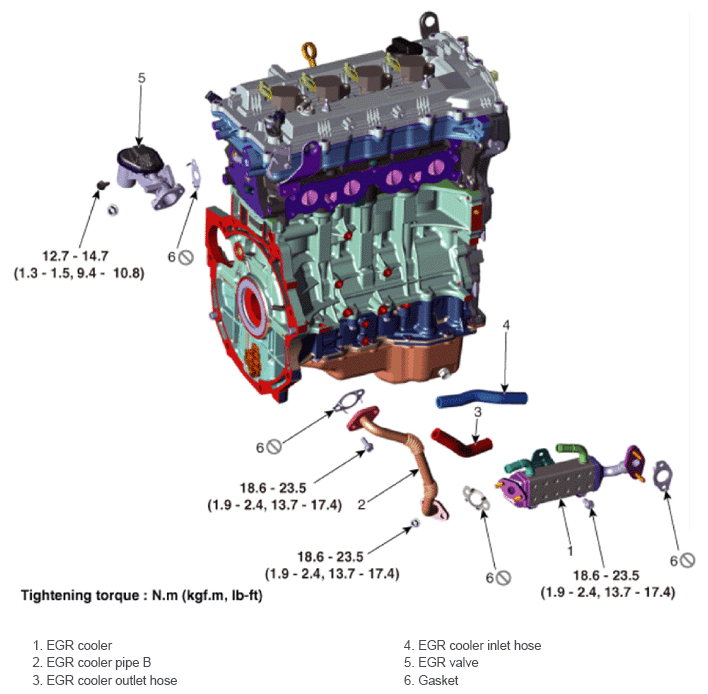

Fig 1: EGR Cooler Components Location With Torque Specification

G14694157

Courtesy of HYUNDAI MOTOR AMERICA
