(Manual Transaxle System)

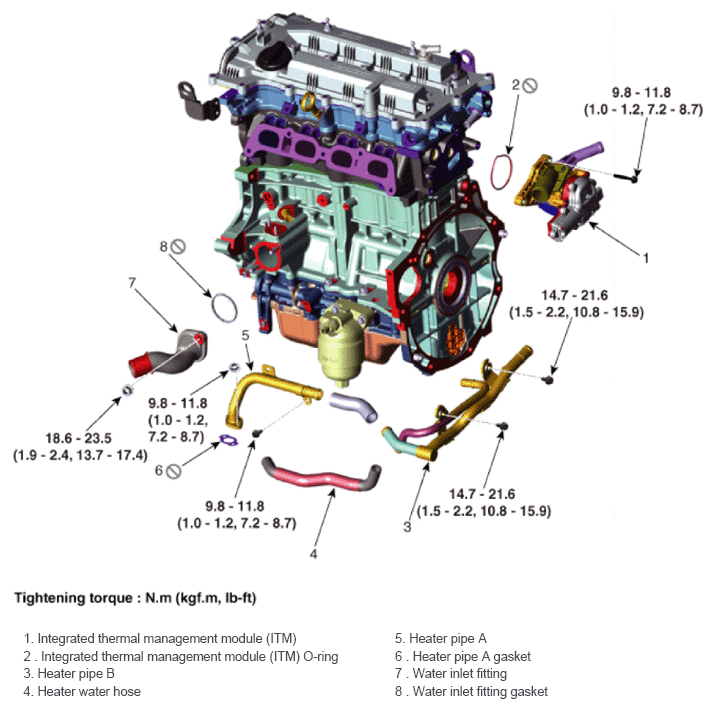

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification (Manual Transaxle System)
G14694073Courtesy of HYUNDAI MOTOR AMERICA
