Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

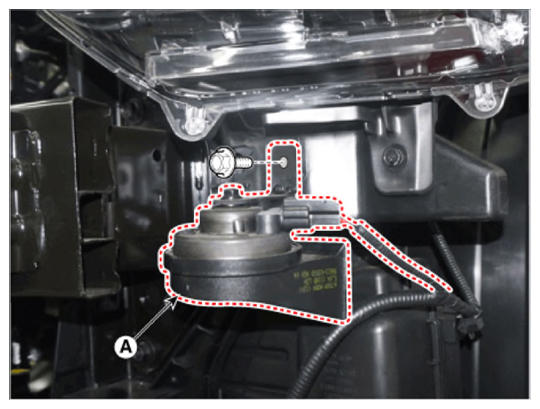

  2. Disconnect the multifunction switch connector and then remove the low horn (A).
G14695952Courtesy of HYUNDAI MOTOR AMERICA
