Repair Procedures: Reassembly

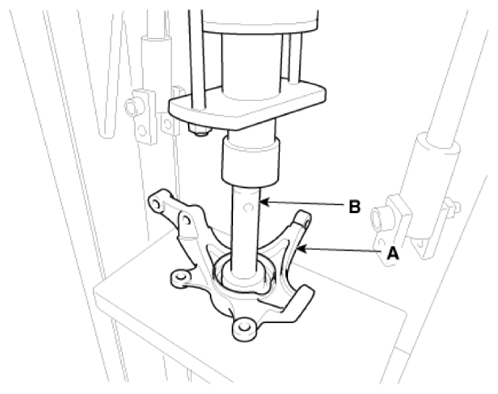

  1. Install the hub bearing to the knuckle assembly.
    1. Lay the knuckle assembly (A) on press.
    2. Lay a new hub bearing upon the knuckle assembly (A).
    3. Lay a suitable adapter (B) upon the hub bearing.
    4. Install the hub bearing to the knuckle assembly by using press.
    G14694924Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.
    • Always use a new wheel bearing assembly.

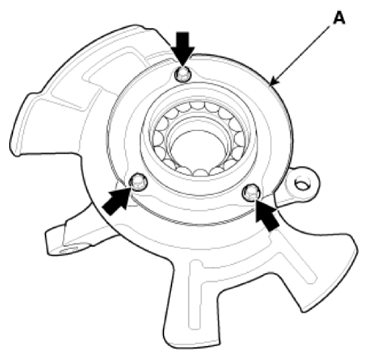

  2. Install the dust cover (A).
    G14694925Courtesy of HYUNDAI MOTOR AMERICA

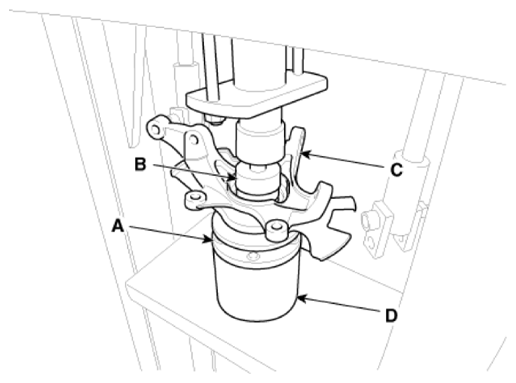

  3. Install the hub assembly to the knuckle assembly.
    1. Lay the hub assembly (A) upon a suitable adapter (B).
    2. Lay the knuckle assembly (C) upon the hub assembly (A).
    3. Lay a suitable adapter (D) upon the hub bearing.
    4. Install the hub assembly (A) to the knuckle assembly (C) by using press.
    G14694926Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Do not press against the inner race of the hub bearing because that can cause damage to the bearing assembly.

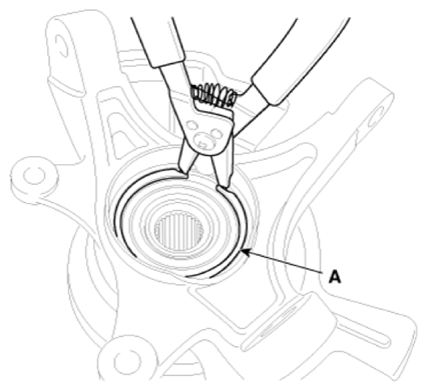

  4. Install the snap ring (A).
    G14694927Courtesy of HYUNDAI MOTOR AMERICA
