Repair Procedures: Disassembly

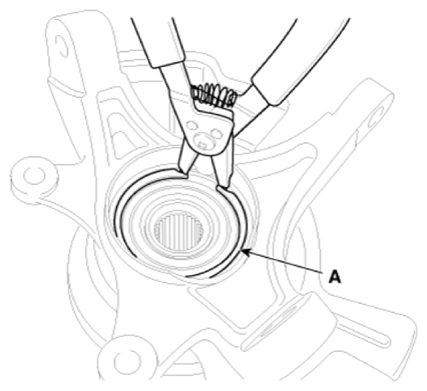

  1. Remove the snap ring (A).
    G14694919Courtesy of HYUNDAI MOTOR AMERICA

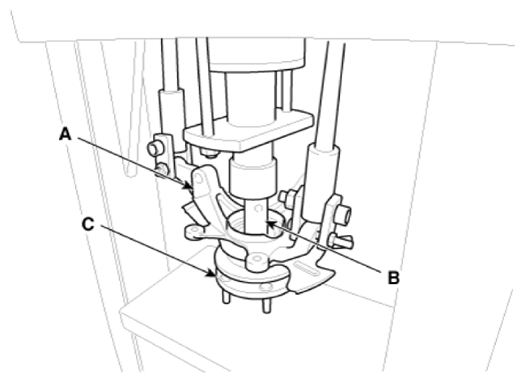

  2. Remove the hub assembly from the knuckle assembly.
    1. Install the front knuckle assembly (A) on press.
    2. Lay a suitable adapter (B) upon the hub assembly shaft.
    3. Remove the hub assembly (C) from the knuckle assembly (A) by using press.
    G14694920Courtesy of HYUNDAI MOTOR AMERICA

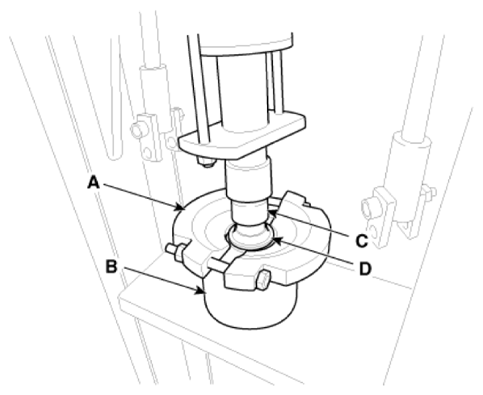

  3. Remove the hub bearing inner race from the hub assembly.
    1. Install a suitable tool (A) for removing the hub bearing inner race on the hub assembly.
    2. Lay the hub assembly and tool (A) upon a suitable adapter (B).
    3. Lay a suitable adapter (C) upon the hub assembly shaft.
    4. Remove the hub bearing inner race (D) from the hub assembly by using press.
      G14694921Courtesy of HYUNDAI MOTOR AMERICA

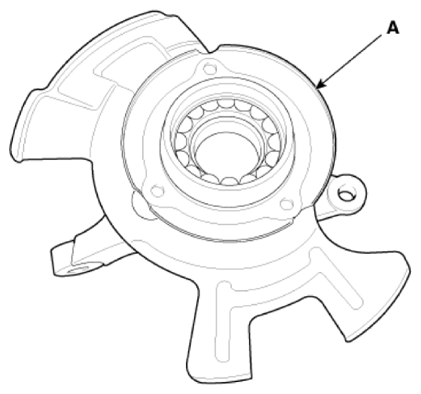

  4. Remove the dust cover (A).
    G14694922Courtesy of HYUNDAI MOTOR AMERICA

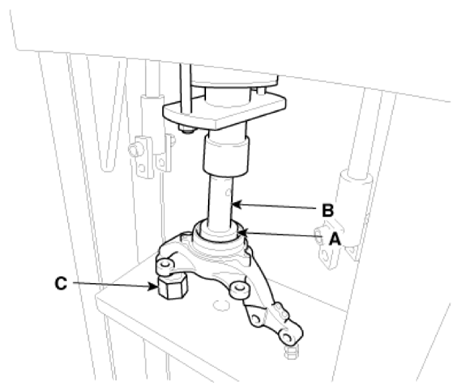

  5. Remove the hub bearing outer race from the knuckle assembly.
    1. Lay the hub assembly (A) upon a suitable adapter (B).
    2. Lay a suitable adapter (C) upon the hub bearing outer race.
    3. Remove the hub bearing outer race from the knuckle assembly by using press.
      G14694923Courtesy of HYUNDAI MOTOR AMERICA
  6. Replace hub bearing with a new one.
