Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX HOUSING ")

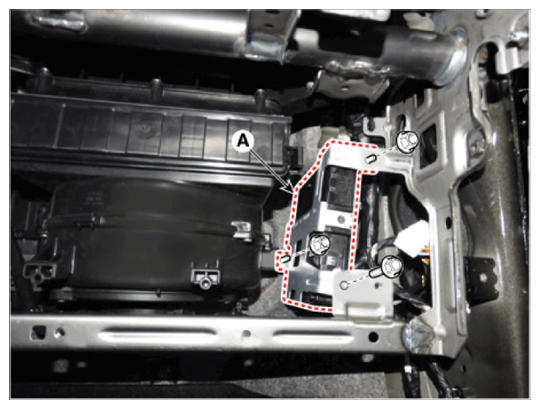

  3. Remove the smart key unit (A) after loosening the nuts.
    G14702466Courtesy of HYUNDAI MOTOR AMERICA

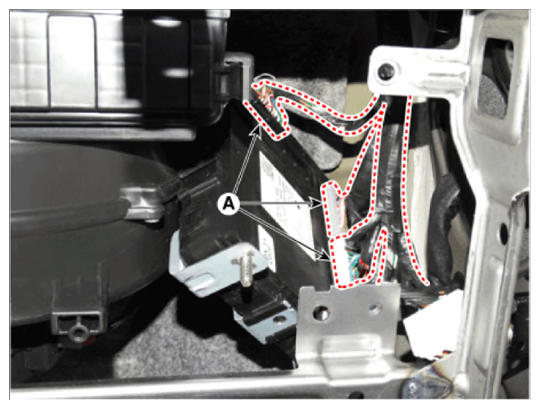

  4. Remove the smart key unit the connectors (A).
G14702467Courtesy of HYUNDAI MOTOR AMERICA
