Valve Body

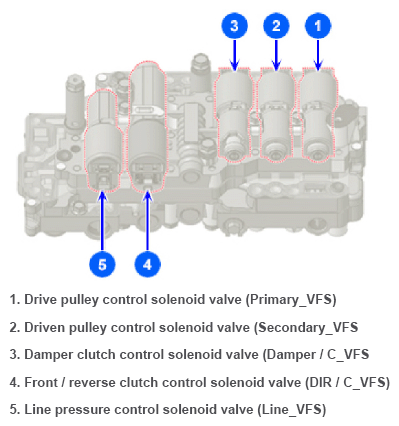

G14706030Courtesy of HYUNDAI MOTOR AMERICA

The PCM activates or inactivates the damper clutch (or torque converter) by using the supplied hydraulic pressure The damper clutch is installed for fuel efficiency as it reduces the load on the hydraulic system within the T/C.
