Components & Components Location: Components

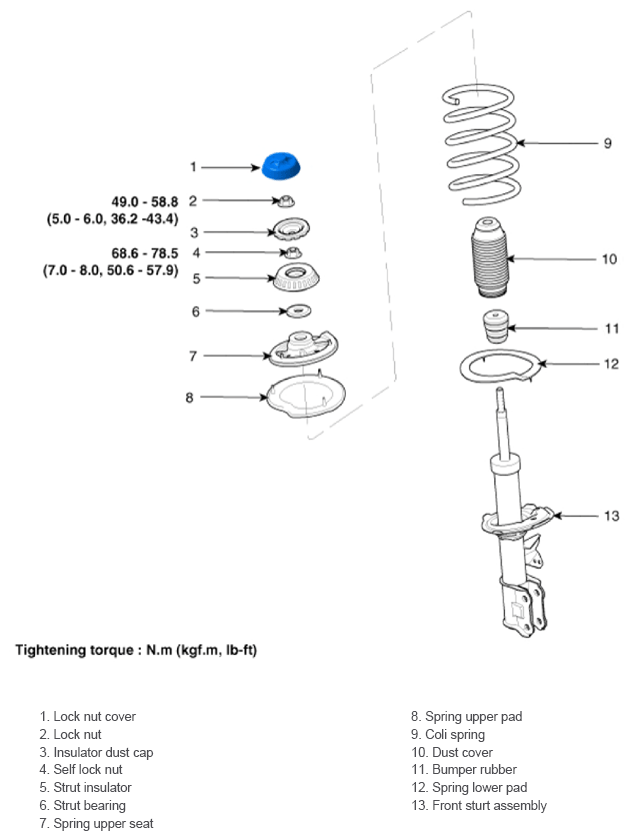

Fig 1: Front Strut Assembly Components Location With Torque Specification

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

• Tighten with specified torque at curb position of vehicle
• Fix the strut rod end and tighten the nut
