Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.

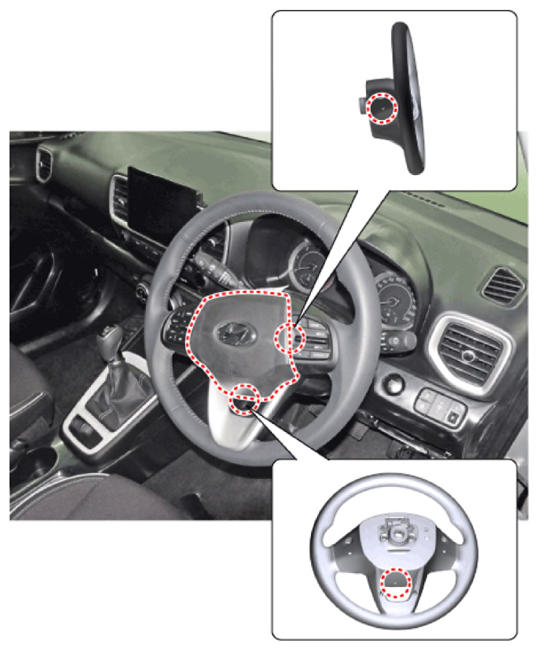

  2. Putting in a flat tool (05 mm) into the guide hole and then release the DAB fixed pin.
    G14695259Courtesy of HYUNDAI MOTOR AMERICA

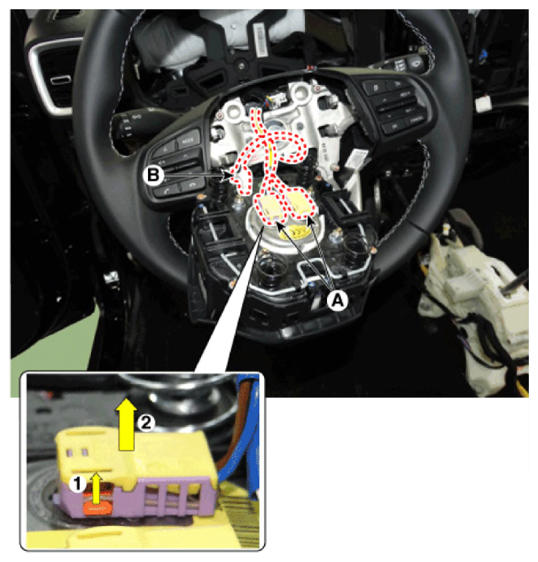

  3. Disconnect the DAB connector (A).
    G14695260Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  5. Remove the steering wheel and steering wheel column shroud.

    (Refer to Steering System - "STEERING COLUMN SHROUD PANEL ")

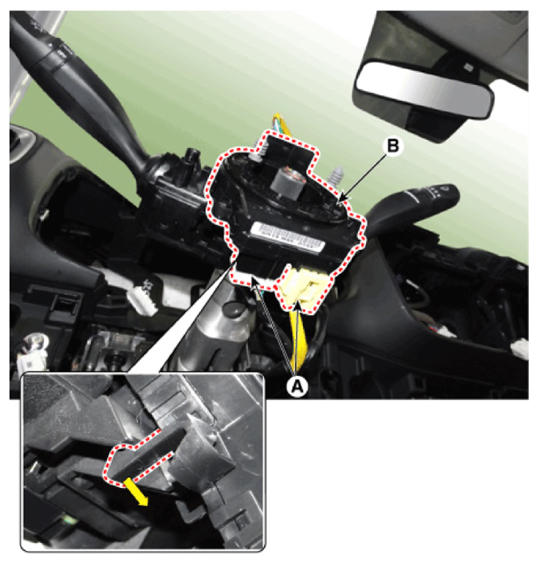

  6. Remove the clock spring after disconnecting the clock spring connector (A).
    G14695261Courtesy of HYUNDAI MOTOR AMERICA
