Diagnostic Flowchart

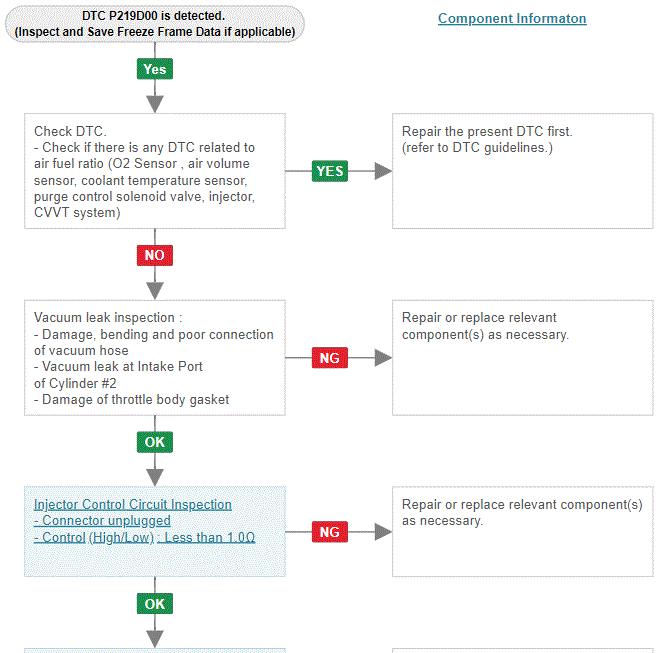

Fig 1: 1 Of 2
G14703399Courtesy of HYUNDAI MOTOR AMERICA

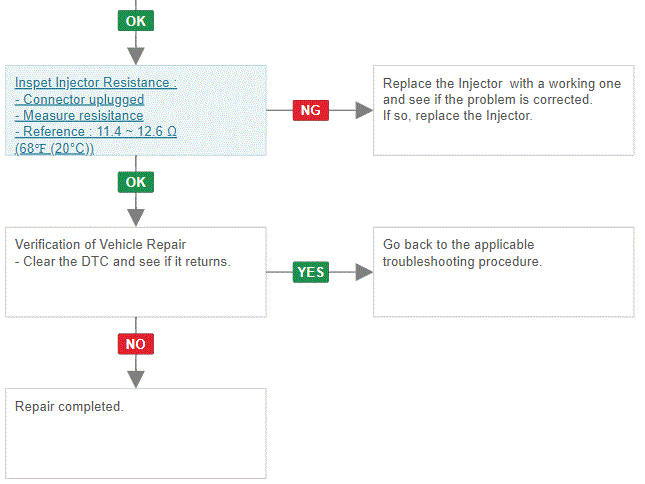

Fig 2: 2 Of 2
G00619002Courtesy of HYUNDAI MOTOR AMERICA
